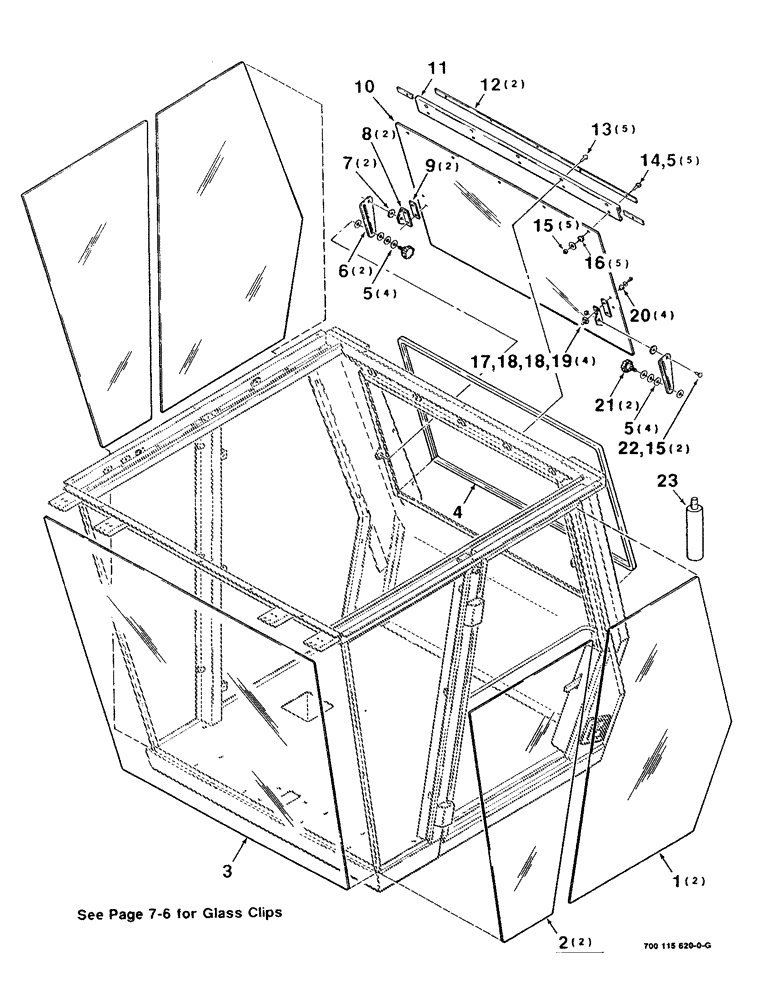

Запчасти Case IH 8830 (7-12) - CAB WINDOWS AND GLASS ASSEMBLY (09) - CHASSIS

1

700704780

GLASS

- side, rear

2шт.

2

700704781

GLASS

- side, front

2шт.

3

700704778

CAB GLASS ASSY

- front

1шт.

4

700110065

SEAL, GLASS

SEAL - window, rear

1шт.

5

705525

WASHER

5/16 HARDENED PLAIN WASHER

10шт.

6

700110067

HANDLE

- window

2шт.

7

7825425

WASHER

- fiber

2шт.

8

700110066

ANGLE

2шт.

9

8022212

SPACER

2шт.

10

700704779

GLASS

- rear

1шт.

11

700704777

HINGE

- window

1шт.

12

700110068

STIFFENER

- hinge

2шт.

13

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

5шт.

14

7883341

SCREW,Hex Washer, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

2шт.

15

704619

SUPPORT

5/16-18 HCLN

4шт.

16

8022196

BUSHING

- molded

5шт.

17

700705088

SCREW,Cross Pan Hd, #10-24 x 3/4"

#10-24 X 3/4 CRPHMS

4шт.

18

705640

WASHER

#10 PLAIN WASHER

8шт.

19

704072

NUT

#10-24 H GR2

4шт.

20

8022204

BUSHING

4шт.

21

700704771

KNOB

2шт.

22

700708649

SQUARE BOLT

5/16-18 X 1/2 RHSSNB

2шт.

23

700704774

SEALANT

- urethane (11 oz. cartridge)

1шт.
