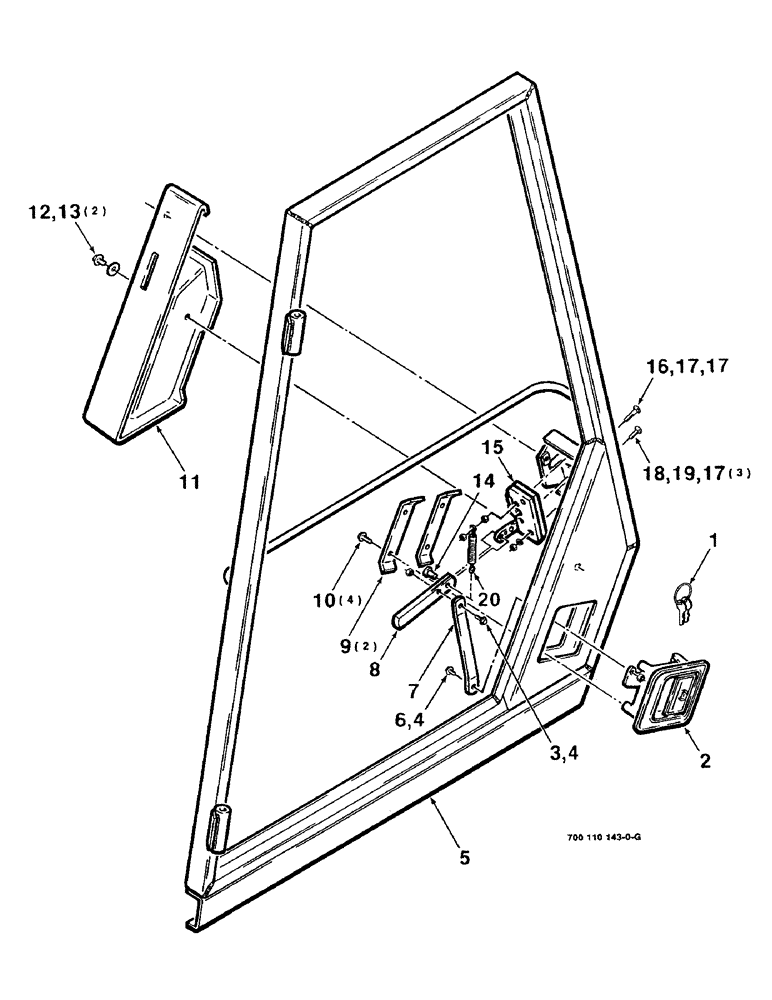

Запчасти Case IH 8830 (7-10) - CAB DOOR ASSEMBLY (09) - CHASSIS

1

8025306

KEY

SET OF KEYS

1шт.

2

700704800

HANDLE

ASSEMBLY - flush mount

1шт.

3

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

1шт.

4

700705521

RIVET

#12-24 HCLN

2шт.

5

700110069

DOOR

WA

1шт.

6

700070227

SCREW,Hex Wash Hd, #12-24 x 1/2"

#12-24 X 1/2 HWHMS

1шт.

7

700110557

LINK

- door latch

1шт.

8

700110094

HANDLE

1шт.

9

700110096

STRAP

- retainer

2шт.

10

63-31010

SCREW,Hex Wash Hd, #10-24 x 5/8"

#10-24 X 5/8 HWHMS

4шт.

11

700110112

COVER

1шт.

12

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 X 1/2 HWHMS

2шт.

13

705517

WASHER

1/4 HARDENED PLAIN WASHER

2шт.

14

700705142

PIN

3/16 X 1/2 CLEVIS PIN

1шт.

15

700704802

LATCH

- left

1шт.

16

7770183

BOLT,Round, 1/4" - 20 x 1 1/2", Grade 5

1/4-20 X 1-1/2 RHSNB

1шт.

17

704007

NUT,1/4"-20, G5

1/4-20 H

5шт.

18

7770175

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

1/4-20 X 1-1/4 RHSNB

3шт.

19

705012

LOCK WASHER

1/4"

3шт.

20

7758022

SPRING

- extension

1шт.
