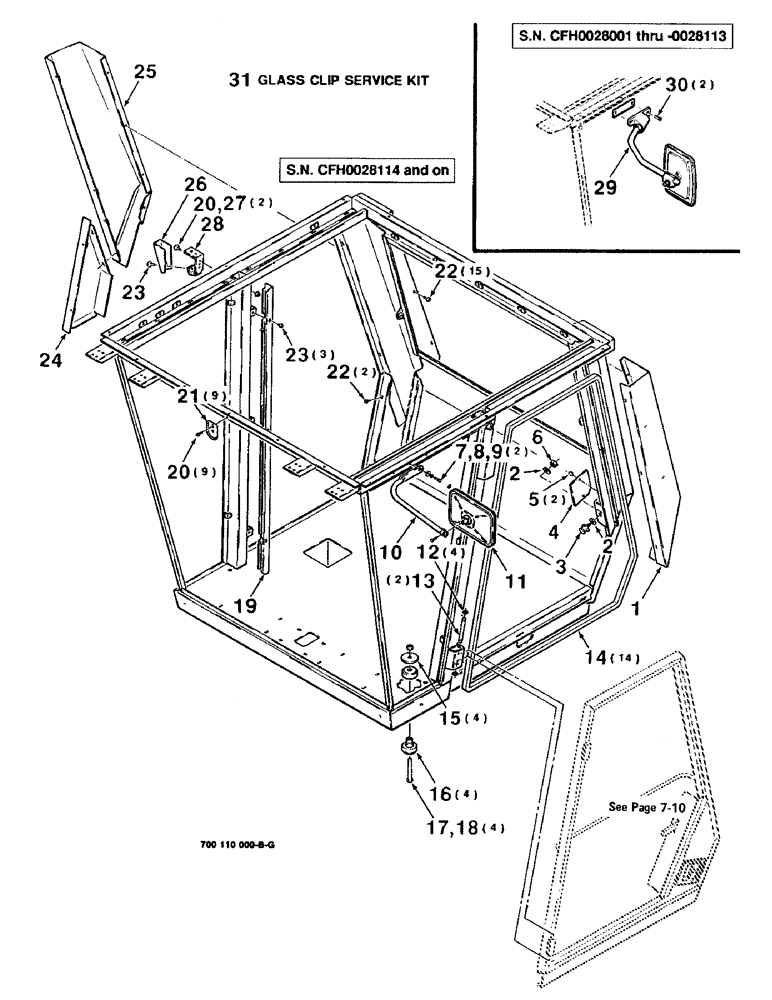

Запчасти Case IH 8830 (7-06) - CAB FRAME ASSEMBLY (09) - CHASSIS

1

700110102

SHIELD

- rear, left

1шт.

2

705731

WASHER,7/16", SAE

7/16 NARROW PLAIN WASHER

2шт.

3

700704801

BOLT,Striker, 7/16" - 14 x 1.715"

- striker

1шт.

4

700110105

COVER PLATE

PLATE - cover

1шт.

5

772525

WASHER

5/16-18 X 1/2 HWHTCTS

2шт.

6

704080

NUT,7/16"-14, G5

7/16-14 H

1шт.

7

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 C

2шт.

8

705012

LOCK WASHER

1/4"

2шт.

9

700709601

WASHER,1/4"

1/4 WIDE PLAIN WASHER

2шт.

10

700117840

SUPPORT

MOUNTING - mirror (S.N. CFH0028114 and later)

1шт.

11

700708969

REAR VIEW MIRROR

MIRROR - rear view (S.N. CFH0028114 and later)

1шт.

12

700704795

CIRCLIP

E-RING

4шт.

13

700110095

PIN

- hinge

2шт.

14

700709973

DOOR SEAL

SEAL - door (15 foot bulk)

14шт.

15

235820

WASHER

4шт.

16

700704796

RUBBER MOUNTING

MOUNT - rubber

4шт.

17

70924136

SCREW

5/8-11 X 3-3/4 C

4шт.

18

704130

NUT,5/8"-11, G5

5/8-11 H

4шт.

19

700110109

SHIELD

- post, right

1шт.

20

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 X 1/2 HWHMS

11шт.

21

700122540

CLIP

- glass retainer

9шт.

22

700705158

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 X 1/2 CRPHMS

17шт.

23

701607

BRACKET

1/4-20 X 1/2 HWHTCTS

4шт.

24

700110107

PANEL

- lower, right

1шт.

25

700110099

SHIELD

- rear, right

1шт.

26

700110151

MOUNTING PLATE

COVER - mounting, antenna

1шт.

27

523282

SERRATED NUT,Flg, USR, 1/4"-20

1/4-20 HFSLN

2шт.

28

700110150

MOUNTING PLATE

MOUNTING - antenna

1шт.

29

5108722

REAR VIEW MIRROR

MIRROR - rear view (S.N. CFH0028001 thru CFH0028113)

1шт.

30

706655

SCREW

1/4-20 X 3/4 SFCHMS (S.N. CFH0028001 thru CFH0028113)

2шт.

31

700124397

KIT

GLASS CLIP SERVICE KIT (Includes items 21 qty. 9 and item 23 qty. 9)

1шт.
