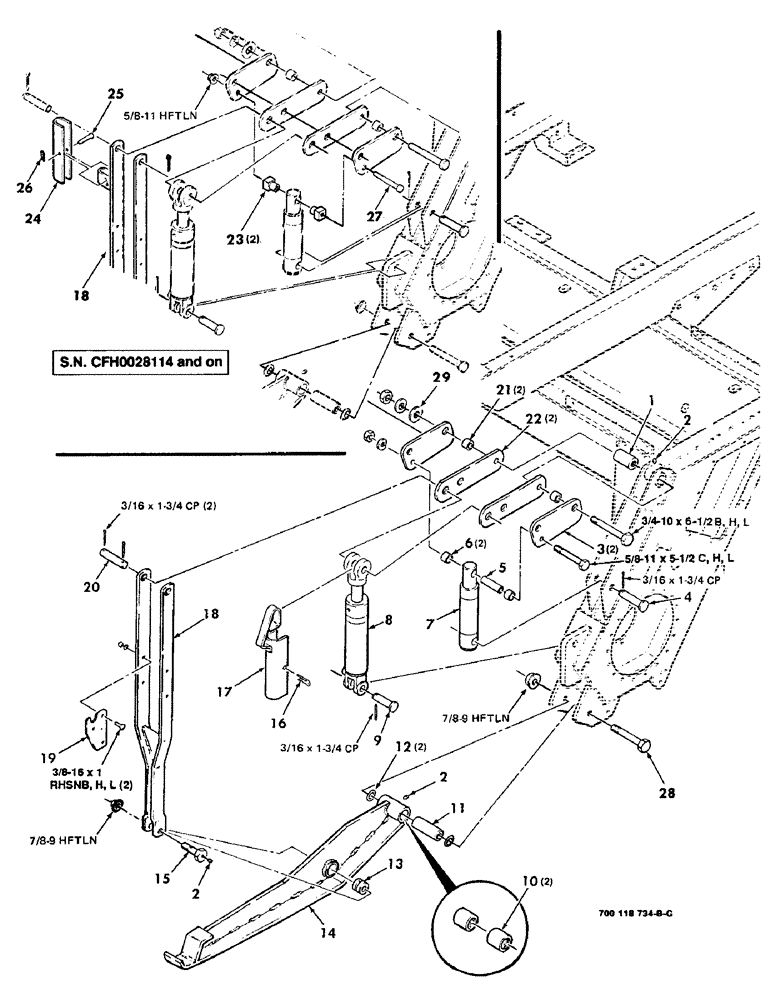

Запчасти Case IH 8830 (7-04) - HEADER FLOTATION AND LIFT ARM ASSEMBLIES, RIGHT (09) - CHASSIS

1

700111080

BUSHING

- arm, upper

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

3

700111101

PLATE

2шт.

4

763243

PIN

1 X 4 CLEVIS PIN

1шт.

5

132738

AUGER

BUSHING (S.N CFH0028001 thru -0028113)

1шт.

6

700111103

SPACER

2шт.

7

700705564

HYDRAULIC CYLINDER

CYLINDER - hydraulic, lift assist (S.N. CFH0028001 - 0028644)

1шт.

700711647

CYLINDER,50.8mm Rod, 127mm Stroke

- hydraulic, lift assist (S.N. CFH0028645 and on)

1шт.

8

700705794

HYDRAULIC CYLINDER

CYLINDER - hydraulic, left flotation (S.N. CFH0028001 - 0028649)

1шт.

700712021

CYLINDER

- hydraulic, left flotation (S.N. CFH0028650 and on)

1шт.

9

763201

PIN

1шт.

10

700705561

NEEDLE BEARING

BEARING - needle

2шт.

11

700111078

BUSHING

- lower

1шт.

12

7033129

O-RING

2шт.

13

700111079

RING

SPACER - link, lift (S.N. CFH0028001 thru -0028263)

1шт.

700121583

SPACER

- link, lift (S.N. CFH0028288 and on)

1шт.

14

700111089

ARM

- lift, left (Without needle bearings)

1шт.

15

700110753

BOLT

CAP SCREW - special (S.N. CFH0028001 thru -0028263)

1шт.

700121584

BOLT,Hex, 7/8" - 9 x , Gr 5

CAP SCREW - special (S.N. CFH0028288 and on)

1шт.

16

62430

PIN

.243 HAIRPIN COTTER (S.N. CFH0028001 thru -0028113)

1шт.

17

700111931

STOP

- safety (S.N. CFH0028001 thru -0028113)

1шт.

18

700111081

LINK ASSY.

LINK - vertical (S.N. CFH0028001 thru -0028263)

1шт.

700121586

LINK

- vertical (S.N. CFH0028288 and on)

1шт.

19

700110905

PLATE

- hanger

1шт.

20

700111102

PIN

1шт.

21

6834071

BUSHING

2шт.

22

700111085

STRAP

- link

2шт.

23

700118814

BUSHING

(S.N. CFH0028114 and on)

2шт.

24

6251292

STOP

- safety (S.N. CFH0028114 and on)

1шт.

25

63644

CLEVIS PIN

3/8 X 2-1/8 CLEVIS PIN (S.N. CFH0028114 and on)

1шт.

26

T54573

PIN

.120 HAIRPIN COTTER (S.N. CFH0028114 and on)

1шт.

27

700709002

BOLT

7/8-9 X 6 B GRADE 8

1шт.

28

700709102

SCREW

5/8-11 X 5-1/2 C GRADE 8

1шт.

29

705723

WASHER

3/4 NARROW PLAIN WASHER

1шт.

700047

BOLT

3/8-16 X 1 RHSNB

2шт.

703330

BOLT

3/4-10 X 6-1/2 B

1шт.

700703922

LOCK NUT,Flg, 5/8"-11

5/8-11 HFTLN

1шт.

700706464

FLANGE NUT,Flg, 7/8"-9

7/8-9 HFTLN

2шт.
