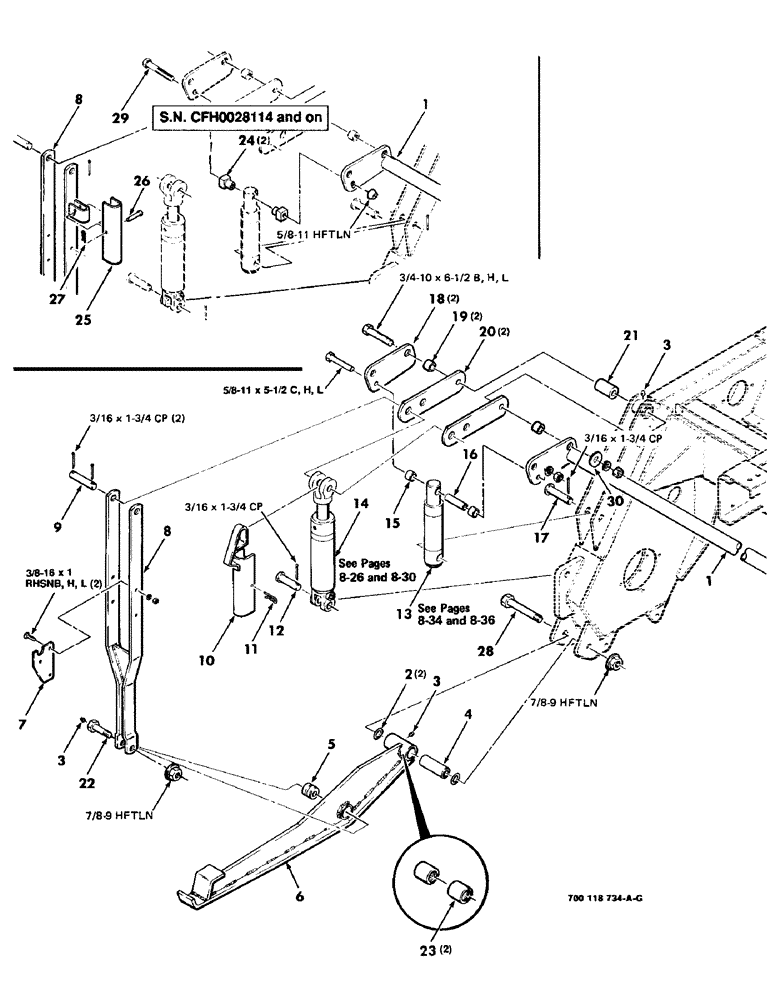

Запчасти Case IH 8830 (7-02) - HEADER FLOTATION AND LIFT ARM ASSEMBLIES, LEFT (09) - CHASSIS

1

700111099

SHAFT

TORQUE TUBE (S.N. CFH0028001 thru -0028113)

1шт.

700118812

SHAFT

TORQUE TUBE (S.N. CFH0028114 and on)

1шт.

2

7033129

O-RING

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

4

700111078

BUSHING

- lower

1шт.

5

700111079

RING

SPACER - link, lift (S.N. CFH0028001 thru -0028263)

1шт.

700121583

SPACER

- link, lift (S.N. CFH0028288 and on)

1шт.

6

700111097

HYDRAULIC LIFT

ARM - lift, right (Without needle bearing)

1шт.

7

700110905

PLATE

- hanger

1шт.

8

700111081

LINK ASSY.

LINK - vertical (S.N. CFH0028001 thru -0028263)

1шт.

700121586

LINK

- vertical (S.N. CFH0028288 and on)

1шт.

9

700111102

PIN

1шт.

10

700111931

STOP

- safety (S.N. CFH0028001 thru -0028113)

1шт.

11

T40222

SPLIT PIN/SAFETY PIN

.243 HAIRPIN COTTER (S.N. CFH0028001 thru -0028113)

1шт.

12

763201

PIN

1шт.

13

700705564

HYDRAULIC CYLINDER

CYLINDER - hydraulic, lift assist (S.N. CFH0028001 thru 0028644)

1шт.

700711647

CYLINDER,50.8mm Rod, 127mm Stroke

- hydraulic, lift assist (S.N. CFH0028645 and on)

1шт.

14

700707214

HYDRAULIC CYLINDER

CYLINDER - hydraulic, right flotation (S.N. CFH0028001 thru -0028647)

1шт.

700712019

CYLINDER

- hydralic, right flotation (S.N. CFH0028648 and on)

1шт.

15

700111103

SPACER

(S.N. CFH0028001 thru -0028113)

2шт.

16

132738

AUGER

BUSHING (S.N. CFH0028001 thru -0028113)

1шт.

17

763243

PIN

1 X 4 CLEVIS PIN

1шт.

18

700111101

PLATE

- torque, outer

1шт.

19

6834071

BUSHING

2шт.

20

700111085

STRAP

- link

2шт.

21

700111080

BUSHING

- arm, upper

1шт.

22

700110753

BOLT

CAP SCREW - special (S.N. CFH0028001 thru -0028263)

1шт.

700121584

BOLT,Hex, 7/8" - 9 x , Gr 5

CAP SCREW - special (S.N. CFH0028288 and on)

1шт.

23

700705561

NEEDLE BEARING

BEARING - needle

2шт.

24

700118814

BUSHING

- block (S.N. CFH0028114 and on)

2шт.

25

6251292

STOP

- safety (S.N. CFH0028114 and on)

1шт.

26

63644

CLEVIS PIN

3/8 X 2-1/8 CLEVIS PIN (S.N. CFH0028114 and on)

1шт.

27

T54573

PIN

.120 HAIRPIN COTTER

1шт.

28

700709002

BOLT

7/8-9 X 6 B GRADE 8

1шт.

29

700709102

SCREW

5/8-11 X 5-1/2 C GRADE 8

1шт.

30

495-11081

WASHER,3/4", SAE

3/4 NARROW PLAIN WASHER

1шт.

700047

BOLT

3/8-16 X 1 RHSNB

2шт.

703330

BOLT

3/4-10 X 6-1/2 B

1шт.

700703922

LOCK NUT,Flg, 5/8"-11

5/8-11 HFTLN

1шт.

700706464

FLANGE NUT,Flg, 7/8"-9

7/8-9 HFTLN

2шт.
