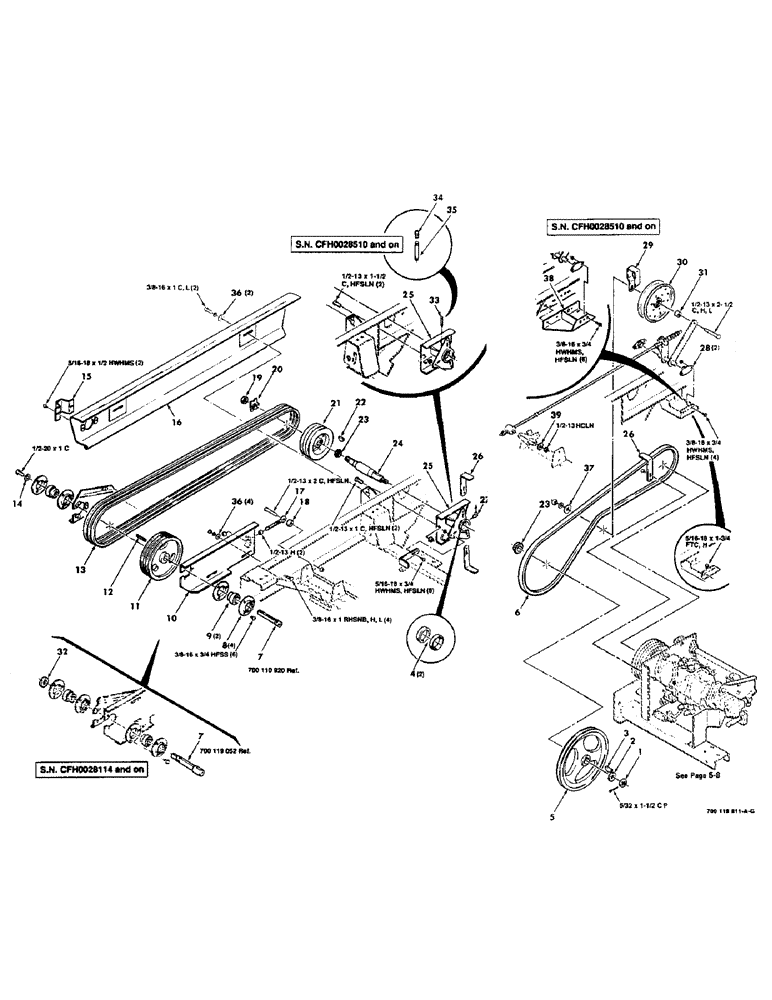

Запчасти Case IH 8830 (6-08) - HEADER DRIVE ASSEMBLY (09) - CHASSIS

1

7704208

SLOTTED NUT

3/4-16 SHN

1шт.

2

497800

WASHER

1шт.

3

700707139

KEY

1/4 X 2-1/8 WOODRUFF KEY

1шт.

4

710459

CUP

BEARING CUP

2шт.

5

700110944

PULLEY

SHEAVE

1шт.

6

7855331

V-BELT,22.33 mm W x 2813.00 mm L

1шт.

7

700110920

SHAFT

- drive, header (S.N. CFH0028001 thru -0028113)

1шт.

700119052

SHAFT

- drive, header (S.N. CFH0028114 and on)

1шт.

8

50534

FLANGED BEARING

- bearing

4шт.

9

713164

BEARING HOUSING

BEARING - spherical

2шт.

10

700110921

MOUNTING PARTS

MOUNTING - drive

1шт.

11

700110928

PULLEY

SHEAVE - 3-groove

1шт.

12

61127

KEY

1/4 X 1/4 X 2-1/2 KEY

1шт.

13

700705503

SET OF BELTS,3454.40 mm L

3 Matched, V-Belt 3454.40 mm L

1шт.

14

6181994

WASHER

- jackshaft

1шт.

15

700118815

SHIELD

- cap

1шт.

16

700110931

SHIELD

- belt

1шт.

17

766287

HOSE,1/2" - 13 x 5"

DRAWBOLT

1шт.

18

6500433

BUSHING

SPACER

1шт.

19

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

1-1/4-12 HJN

1шт.

20

700110754

LOCKING TAB

TAB - locking

1шт.

21

700110930

PULLEY

SHEAVE - 3-groove

1шт.

22

61283

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

23

713818

ROLLER BEARING,34.938 mm ID x 65.113 mm OD x 18.796 mm

BEARING CONE

2шт.

24

700115891

SHAFT

1шт.

25

700110912

HOUSING

BRACKET (w/cups)

1шт.

700122746

BAR LINING

HOUSING BRACKET (w/cups)

1шт.

26

700110929

GUIDE

- belt

4шт.

27

77313

FITTING

1/4-28 X 90 DEGREE ZERK

1шт.

28

714592

BUSHING

BEARING

2шт.

29

700110935

GUIDE

- belt

1шт.

30

54510

FRONT IDLER

IDLER - flat

1шт.

31

159970

SPACER

1шт.

32

700709031

COLLAR

- threaded (S.N. CFH0028114 and on)

1шт.

33

77297

NIPPLE, LUBE

ZERK (S.N. CFH0028510 and on)

1шт.

34

700711232

FITTING

ZERK - female - 1/8 NPT

1шт.

35

7792922

PIPE

NIPPLE

1шт.

36

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

6шт.

37

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

38

700110862

SUPPORT

- idler (S.N. CFH0028510 and on)

1шт.

39

495-11053

WASHER,1/2", SAE

1/2 NARROW PLAIN WASHER

1шт.

7772858

BOLT,Hex, 5/16" x 1 3/4", Gr 5

5/16-18 X 1-3/4 FTC

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 X 1 C

2шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 C

2шт.

703181

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 X 1 C

1шт.

7701675

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 C

1шт.

7703531

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1/2-13 X 2-1/2 C

1шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HWHMS

2шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

8шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

6шт.

700047

BOLT

3/8-16 X 1 RHSNB

4шт.

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HFSS

6шт.

704288

LOCK NUT

1/2-13 HCLN

1шт.
