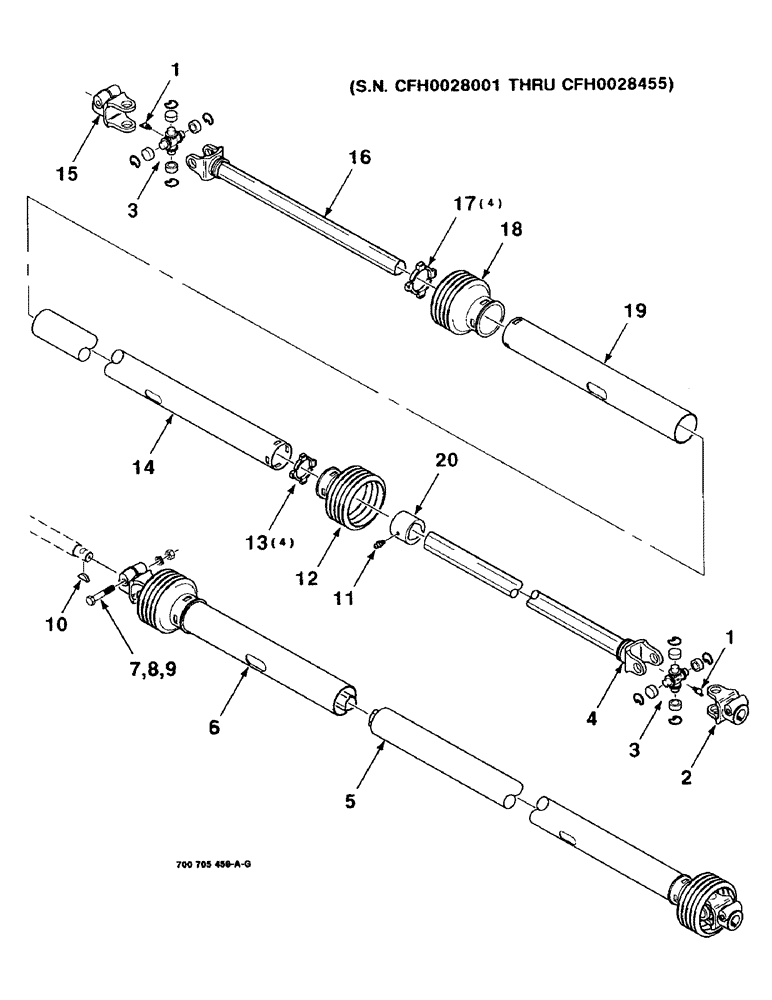

Запчасти Case IH 8830 (6-04) - HEADER DRIVELINE ASSEMBLY, NEAPCO, SERIAL NUMBER CFH0028001 THRU CFH0028455 (09) - CHASSIS

1

77107

FITTING

1/8-27 X 65 DEGREE ZERK

2шт.

2

757716

CLAMP

YOKE - clamp

1шт.

3

757443

U-JOINT SPIDER

CROSS AND BEARING KIT

2шт.

4

700706166

YOKE

AND OUTER TUBE

1шт.

5

700706171

PROPELLER SHAFT

U-JOINT ASSEMBLY - half, inner

1шт.

6

700706165

PTO

U-JOINT ASSEMBLY - half, outer

1шт.

7

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

9

86516876

COVER

1/2-13 H

1шт.

10

61283

WOODRUFF KEY,#15, 1/4" x 1"

1/4 X 1 WOODRUFF KEY

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

12

700706167

SHIELD

- bell, flex, inner

1шт.

13

700706170

SHIELD

BEARING - nylon, shield, inner

4шт.

14

700706169

FLEXIBLE HOSE

SHIELD - inner

1шт.

15

700700842

LINKAGE YOKE

YOKE - clamp

1шт.

Ref #15- p/n700700842 is used on the right side driveline(tractor end) which is used on draper headers only. The left side yoke on the tractor end of the driveline is p/n757716.

1шт.

16

700706161

UNIVERSAL JOINT

YOKE AND INNER TUBE

1шт.

17

700706164

BEARING COVER

BEARING - nylon, shield, outer

4шт.

18

700706162

SHIELD

- bell, flex, outer

1шт.

19

700706163

FLEXIBLE HOSE

SHIELD - outer

1шт.

20

700706172

CLIP

BEARING - shield support

1шт.
