(8-34) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, 700705564 HYDRAULIC CYLINDER ASSEMBLY COMPLETE-

Запчасти Case IH 8830 (8-34) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, 700705564 HYDRAULIC CYLINDER ASSEMBLY COMPLETE- (08) - HYDRAULICS

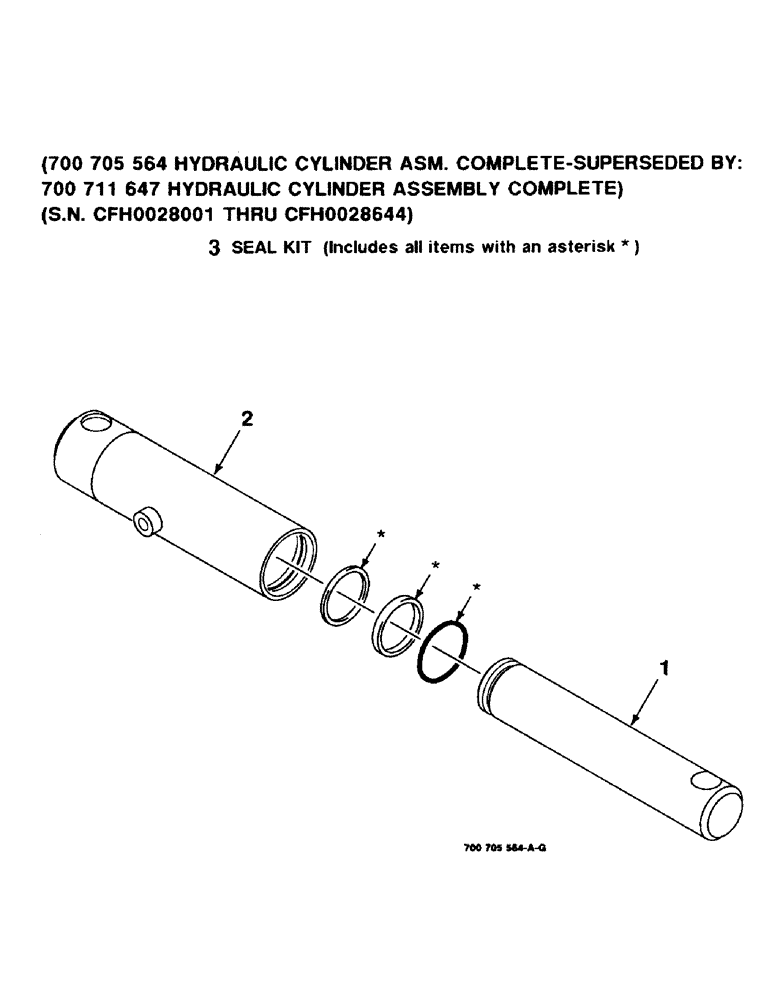

Схема запчастей Case IH 8830 - (8-34) - HYDRAULIC CYLINDER ASSEMBLY, HEADER LIFT, 700705564 HYDRAULIC CYLINDER ASSEMBLY COMPLETE- (08) - HYDRAULICS
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700705564

HYDRAULIC CYLINDER

COMPLETE (2 in bore x 5 in stroke)

1шт.

1

700706186

PISTON ROD

ROD - piston

1шт.

2

700706185

TUBE ASSY.

BARREL

1шт.

3

7039894

SEAL KIT

KIT

1шт.
