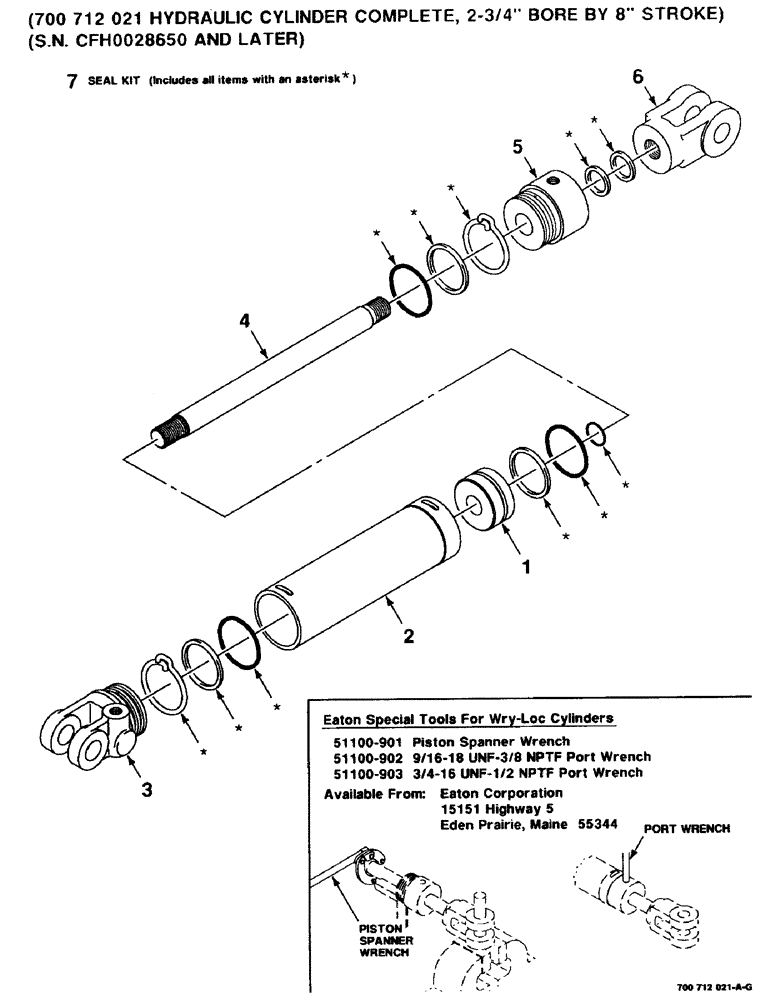

Запчасти Case IH 8830 (8-32) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, LEFT, 700712021 HYDRAULIC CYLINDER COMPLETE (08) - HYDRAULICS

700712021

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2-3/4 in bore x 8 in stroke)

1шт.

1

700710255

PISTON

- cylinder

1шт.

2

700712107

SLEEVE CYLINDER

BARREL

1шт.

3

700706175

HEAD

- cylinder

1шт.

4

700706178

PISTON ROD

ROD - piston

1шт.

5

700712108

LIFT CYLINDER

BEARING - cylinder rod

1шт.

6

700700099

CLEVIS

- rod end

1шт.

7

700710256

SEAL KIT

1шт.
