(8-30) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, RIGHT, 700712019 HYDRAULIC CYLINDER COMPLETE

Запчасти Case IH 8830 (8-30) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, RIGHT, 700712019 HYDRAULIC CYLINDER COMPLETE (08) - HYDRAULICS

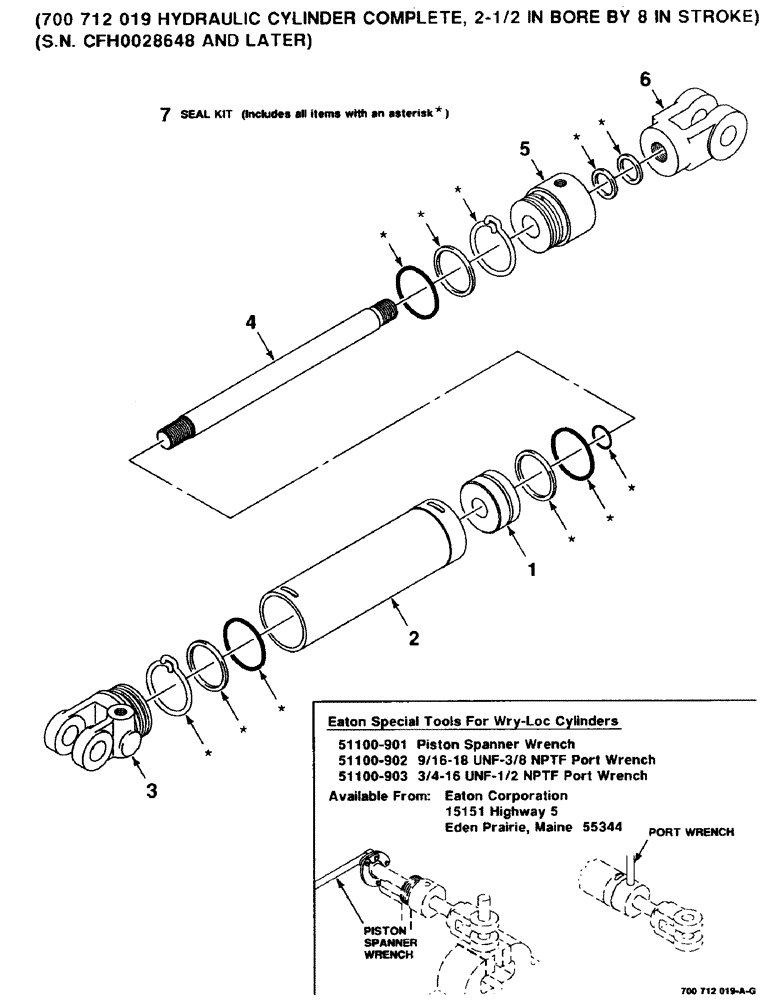

Схема запчастей Case IH 8830 - (8-30) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, RIGHT, 700712019 HYDRAULIC CYLINDER COMPLETE (08) - HYDRAULICS
6
3
5
1
4
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712019

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2-1/2 in bore x 8 in stroke)

1шт.

1

700710191

PISTON

- cylinder

1шт.

2

700712096

TUBE ASSY.

BARREL

1шт.

3

700707225

HEAD

- cylinder

1шт.

4

700700092

PISTON ROD

ROD - piston

1шт.

5

700712097

BEARING

- cylinder rod

1шт.

6

700700030

CLEVIS

- rod end

1шт.

7

700710192

SEAL KIT

1шт.
