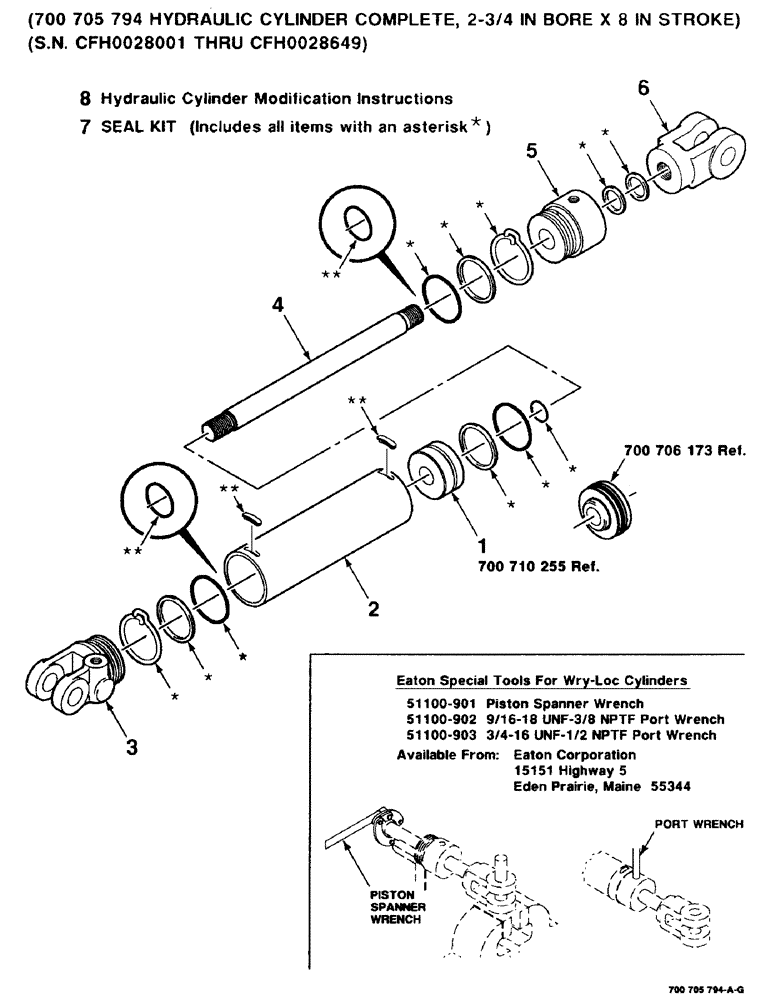

Запчасти Case IH 8830 (8-28) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, LEFT, 700705794 HYDRAULIC CYLINDER COMPLETE, (08) - HYDRAULICS

700705794

HYDRAULIC CYLINDER

COMPLETE (2-3/4 in bore x 8 in stroke)

1шт.

1

700706173

PISTON

- cylinder (Superseded by 700710255 and 700710256)

1шт.

700710255

PISTON

- cylinder

1шт.

700710256

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.

2

700706177

TUBE ASSY.

BARREL

1шт.

700710257

SLEEVE CYLINDER

BARREL (Ends of I.D. are chamfered for o-ring sealing)

1шт.

3

700706175

HEAD

- cylinder

1шт.

4

700706178

PISTON ROD

ROD - piston

1шт.

5

700706174

BUSHING

BEARING - cylinder rod

1шт.

6

700700099

CLEVIS

- rod end

1шт.

7

700706180

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk

1шт.

700710256

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with double asterisk

1шт.

8

700705795

INSTRUCTION

MODIFICATION INSTRUCTIONS

1шт.
