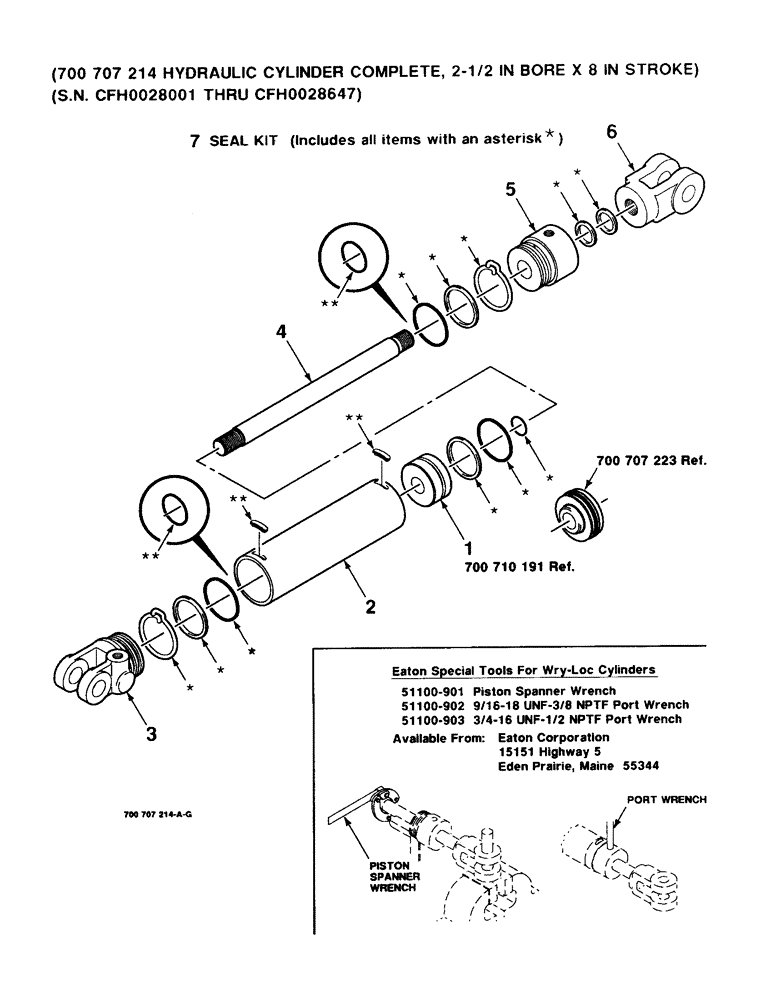

Запчасти Case IH 8830 (8-26) - HYDRAULIC CYLINDER ASSEMBLY, FLOTATION, RIGHT, 700707214 HYDRAULIC CYLINDER COMPLETE, (08) - HYDRAULICS

700707214

HYDRAULIC CYLINDER

COMPLETE (2-1/2 in bore x 8 in stroke)

1шт.

1

700707223

PISTON

- cylinder

1шт.

700710191

PISTON

- cylinder

1шт.

700710192

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.

2

700704893

BARREL

1шт.

700710238

SLEEVE CYLINDER

BARREL

1шт.

3

700707225

HEAD

- cylinder

1шт.

4

700700092

PISTON ROD

ROD - piston

1шт.

5

700704891

CYLINDER END CAP

BEARING - cylinder rod

1шт.

6

700700030

CLEVIS

- rod end

1шт.

7

700707226

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with a asterisk

1шт.

700710192

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with double asterisk

1шт.
