(8-24) - MANIFOLD BYPASS AND FILTER ASSEMBLY

Запчасти Case IH 8830 (8-24) - MANIFOLD BYPASS AND FILTER ASSEMBLY (08) - HYDRAULICS

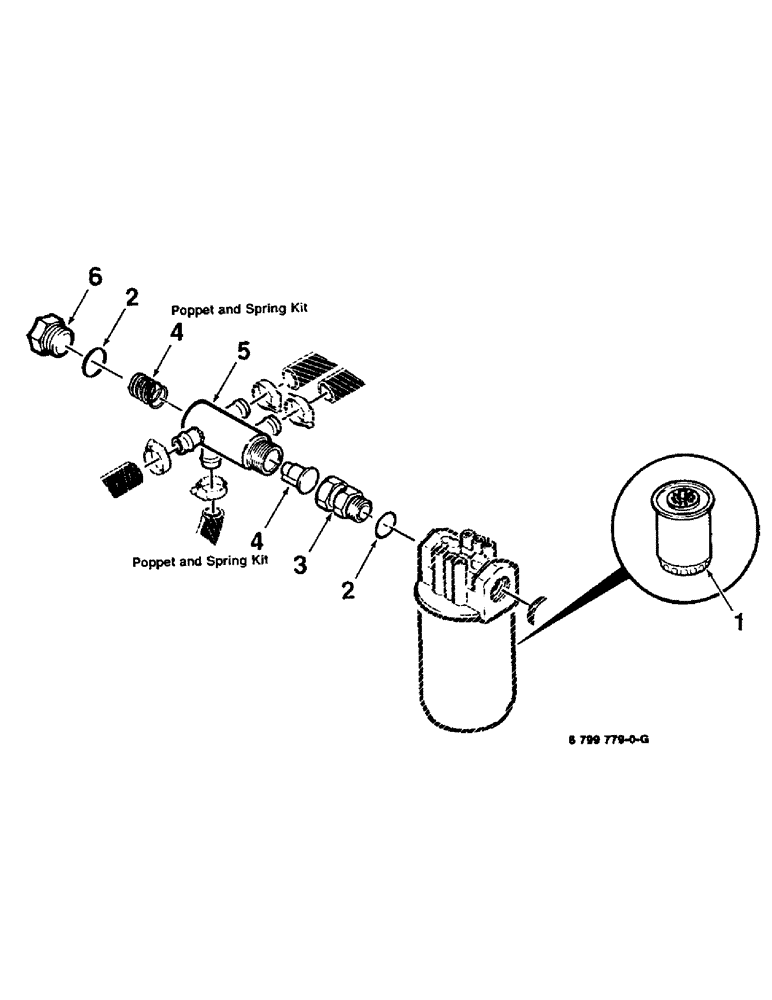

Схема запчастей Case IH 8830 - (8-24) - MANIFOLD BYPASS AND FILTER ASSEMBLY (08) - HYDRAULICS
2
2
5
4
4
1
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7738743

FILTER

KIT - filter element

1шт.

2

7037807

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

2шт.

3

8746125

FITTING

ADAPTER - swivel (Includes item 2)

1шт.

4

8040669

VALVE POPPET

POPPET AND SPRING KIT (2 pieces)

1шт.

5

6799787

MANIFOLD

1шт.

6

8746117

PLUG

(Includes item 2)

1шт.
