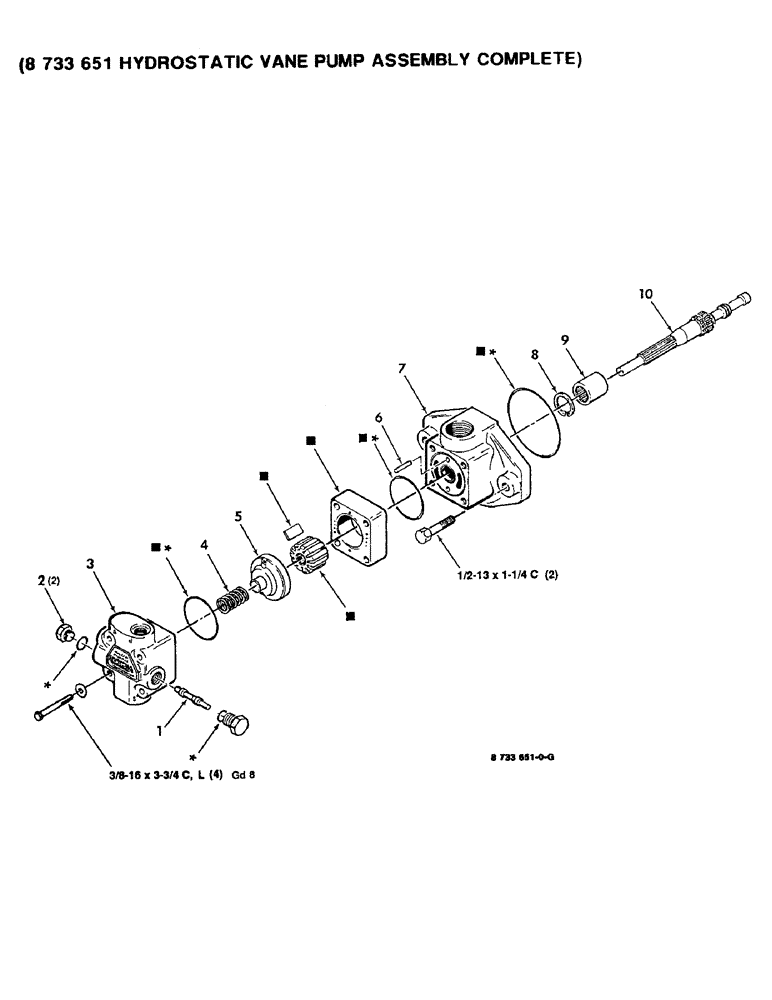

Запчасти Case IH 8830 (8-22) - HYDROSTATIC VANE PUMP ASSEMBLY, TRANSMISSION, 8733651 HYDROSTATIC VANE PUMP ASSEMBLY COMPLETE (08) - HYDRAULICS

8733651

PUMP

VANE PUMP - hydrostatic, complete

1шт.

1

8730319

PISTON

- shuttle

1шт.

2

736223

PLUG

2шт.

3

8730293

COVER

1шт.

4

7033764

SPRING

1шт.

5

7033756

PLATE

- pressure

1шт.

6

7039167

PIN

- dowel

2шт.

7

8730335

BODY

1шт.

8

8730285

COVER

RETAINING RING

1шт.

9

8730525

COUPLING

1шт.

10

8730343

SHAFT

- pump

1шт.

7071921

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 8

3/8-16 X 3-3/4 C GRADE 8

4шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1/2-13 X 1-1/4 C

2шт.

8730277

KIT

CARTRIDGE KIT, Includes items in art marked with a square.

1шт.

700705452

SEAL KIT

Includes items in art marked with an asterisk.

1шт.

8733651 - When ordering Vane pump assy #10 8730343 is not included with this assembly - must be ordered separately.

1шт.
