(8-18) - TRANSMISSION MOTOR ASSEMBLY, TRANSMISSION, 8842874 HYDROSTATIC MOTOR ASSEMBLY COMPLETE

Запчасти Case IH 8830 (8-18) - TRANSMISSION MOTOR ASSEMBLY, TRANSMISSION, 8842874 HYDROSTATIC MOTOR ASSEMBLY COMPLETE (08) - HYDRAULICS

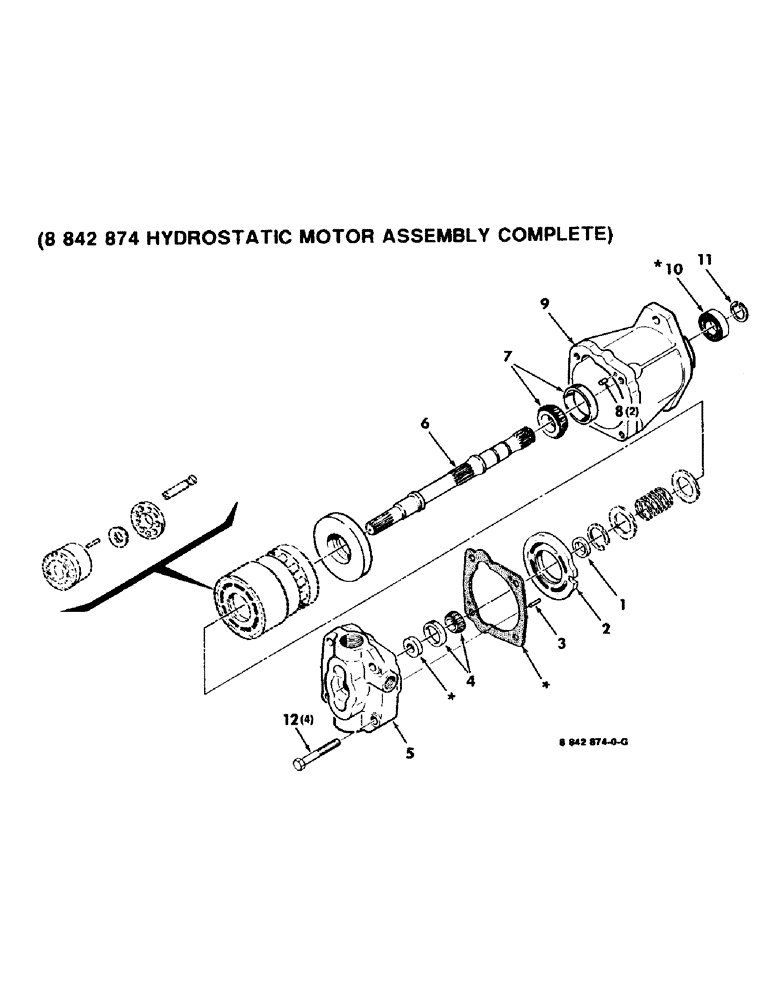

Схема запчастей Case IH 8830 - (8-18) - TRANSMISSION MOTOR ASSEMBLY, TRANSMISSION, 8842874 HYDROSTATIC MOTOR ASSEMBLY COMPLETE (08) - HYDRAULICS
6
10
11
3
4
7
2
12
1
9
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

8842874

HYDROSTATIC MOTOR

COMPLETE

1шт.

1

8730145

KIT

SPACER - bearing, kit

1шт.

2

8730426

PLATE

- wafer

1шт.

3

8730178

PIN

ROLL PIN

1шт.

4

8730046

BEARING SET

BEARING SET

1шт.

5

8730418

VALVE

BLOCK - valve

1шт.

6

8730459

SHAFT

1шт.

7

8730053

BEARING SET

BEARING SET

1шт.

8730467

PIN

DOWEL PIN

2шт.

9

8730475

HOUSING

1шт.

10

700705451

SEAL

SEAL - shaft

1шт.

11

740712

OIL SEAL

RETAINING RING

1шт.

12

8732620

CYLINDER

STUD

4шт.

700705529

SEAL KIT

SEAL REPAIR KIT, Includes items in art marked with asterisk.

1шт.
