(8-14) - CONTROL VALVE, LIFT AND FLOTATION, HY/COMP, 700705584 VALVE ASSEMBLY COMPLETE

Запчасти Case IH 8830 (8-14) - CONTROL VALVE, LIFT AND FLOTATION, HY/COMP, 700705584 VALVE ASSEMBLY COMPLETE (08) - HYDRAULICS

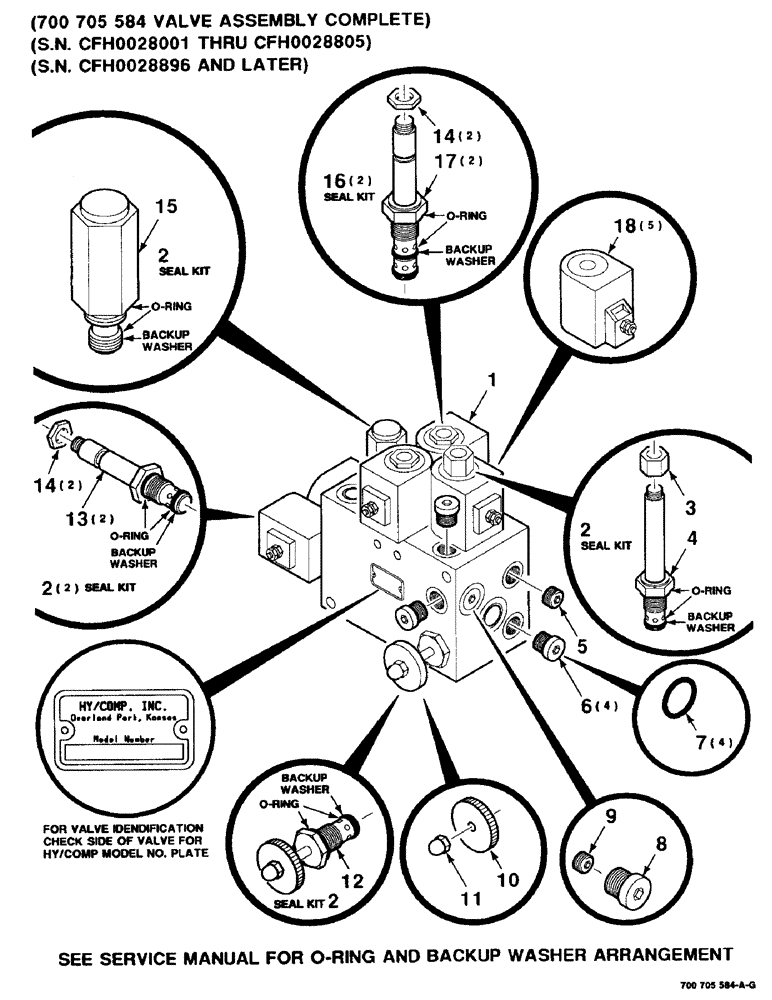

Схема запчастей Case IH 8830 - (8-14) - CONTROL VALVE, LIFT AND FLOTATION, HY/COMP, 700705584 VALVE ASSEMBLY COMPLETE (08) - HYDRAULICS
15
11
2
14
7
12
2
5
14
1
2
17
6
13
9
2
16
3
8
4
10
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700705584

CONTROL VALVE

VALVE - control, complete

1шт.

2

700706154

SEAL KIT

KIT - seal

5шт.

3

700706156

NUT

HEX NUT

1шт.

4

700706155

VALVE PRESSURE RELIE

CARTRIDGE

1шт.

5

700706160

ORIFICE

PLUG - orifice .109

1шт.

6

700706603

PLUG

(Includes item 7)

4шт.

7

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

4шт.

8

700707840

PLUG

- o-ring

1шт.

9

700706159

ORIFICE

PLUG - orifice .060

1шт.

10

700709819

KNOB

1шт.

11

700709818

NUT

- acorn

1шт.

12

700706158

DRAINCOCK/TAP SUPPLY

VALVE - needle

1шт.

13

700706153

HYDRAULIC VALVE

CARTRIDGE

2шт.

14

700706151

NUT

HEX NUT

4шт.

15

700706157

HYDRAULIC VALVE

VALVE - relief

1шт.

16

700706152

SEAL KIT

KIT - seal

2шт.

17

700706148

CARTRIDGE

2шт.

18

700706149

COIL

- solenoid

5шт.
