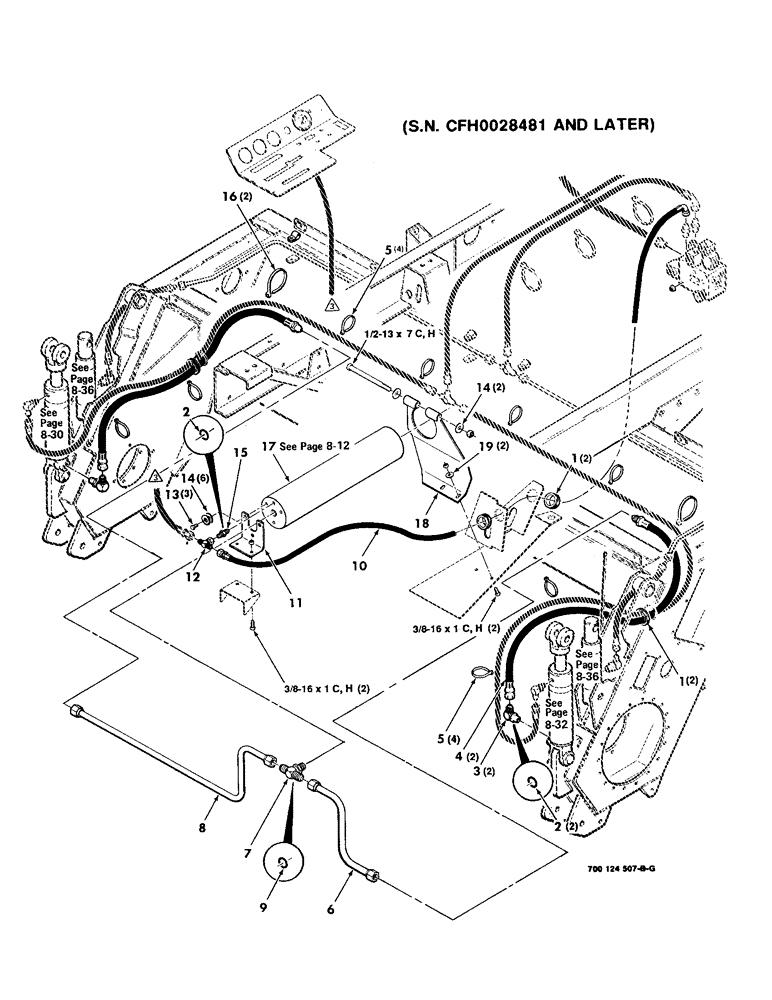

Запчасти Case IH 8830 (8-10) - HEADER LIFT HYDRAULIC ASSEMBLY, SERIAL NUMBER CFH0028481 AND LATER (08) - HYDRAULICS

1

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

4шт.

2

738468

O-RING

3шт.

3

8746398

ELBOW

90 DEGREE ELBOW WITH O-RING

2шт.

4

8842338

HOSE

- hydraulic

2шт.

5

722470

MOUNTING CLIP

TIE - cable

8шт.

6

700710193

TUBE,19.05 mm OD, 284, 250 mm Length

LINE - hydraulic

1шт.

7

700706902

TEE

FITTING - tee

1шт.

8

700710691

TUBE,19.05 mm OD, 956, 250 mm Length

LINE - hydraulic

1шт.

9

738484

O-RING

1шт.

10

700710850

HOSE

- hydraulic

1шт.

11

700121191

SUPPORT

- accumulator

1шт.

12

8746034

TEE

9/16-18 TEE

1шт.

13

873364

HARDWARE

1/2-20 X 3/4 C

3шт.

14

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

8шт.

15

846634

COUPLING, BREAK AWAY

CONNECTOR

1шт.

16

7021728

STRAP

TIE - cable

2шт.

17

700710134

ACCUMULATOR

(S.N. CFH0028001 thru -0028830)

1шт.

700712632

ACCUMULATOR

(S.N. CFH0028831 and later)

1шт.

18

700121190

SUPPORT

- accumulator

1шт.

19

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

2шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

4шт.

873547

BOLT

1/2-13 X 7 C

1шт.
