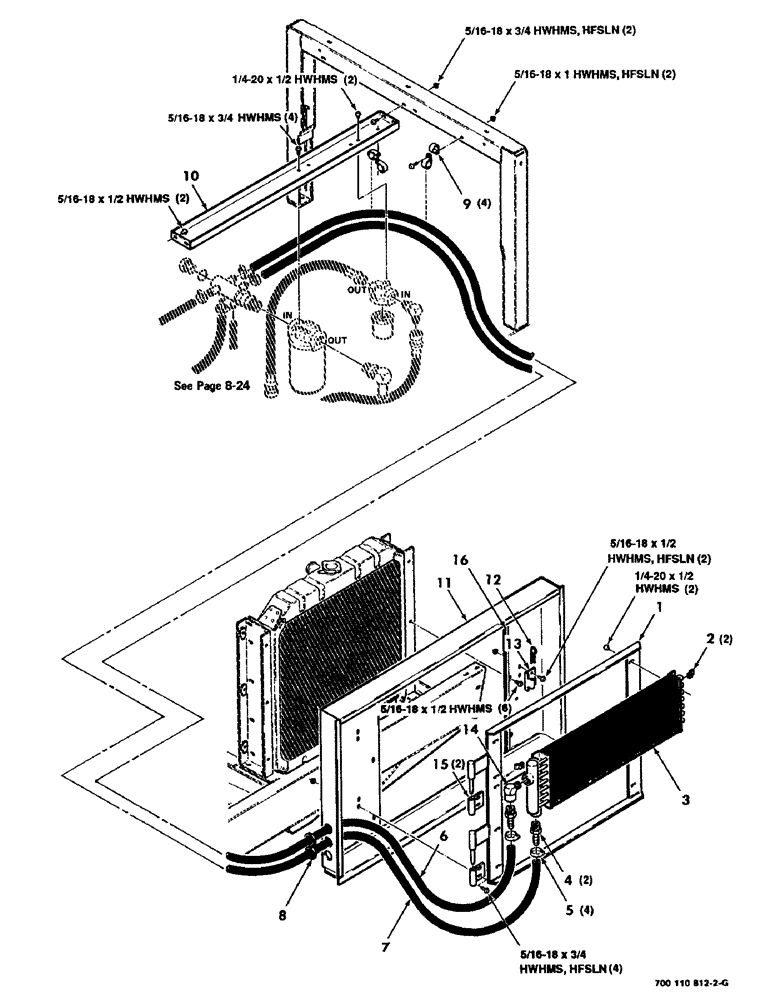

Запчасти Case IH 8830 (8-04) - HYDRAULIC COOLER ASSEMBLY (08) - HYDRAULICS

1

700111172

FRAME

- primary, cooler

1шт.

2

74807

NUT

1/4-20 SPEED NUT

4шт.

3

700705538

OIL COOLER

COOLER - oil, hydraulic

1шт.

4

846899

INSERT

- male

2шт.

5

7022411

HOSE CLAMP

CLAMP - hose

4шт.

6

700705544

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

7

700705543

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

8

8027179

GROMMET

2шт.

9

756486

CLAMP

- hose

4шт.

10

700111164

SUPPORT

- filter

1шт.

11

700111165

PANEL

1шт.

12

62349

LOCK WASHER

.149 HAIRPIN COTTER

1шт.

13

700111171

SUPPORT

1шт.

14

7846298

ELBOW

3/4 NPTF X 90 DEGREE ELBOW

1шт.

15

6805402

HINGE

2шт.

16

700111916

RUBBER WEATHERSTRIP

STRIPPING - weather

1шт.

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 X 1/2 HWHMS

6шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HWHMS

10шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

10шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 X 1 HWHMS

2шт.
