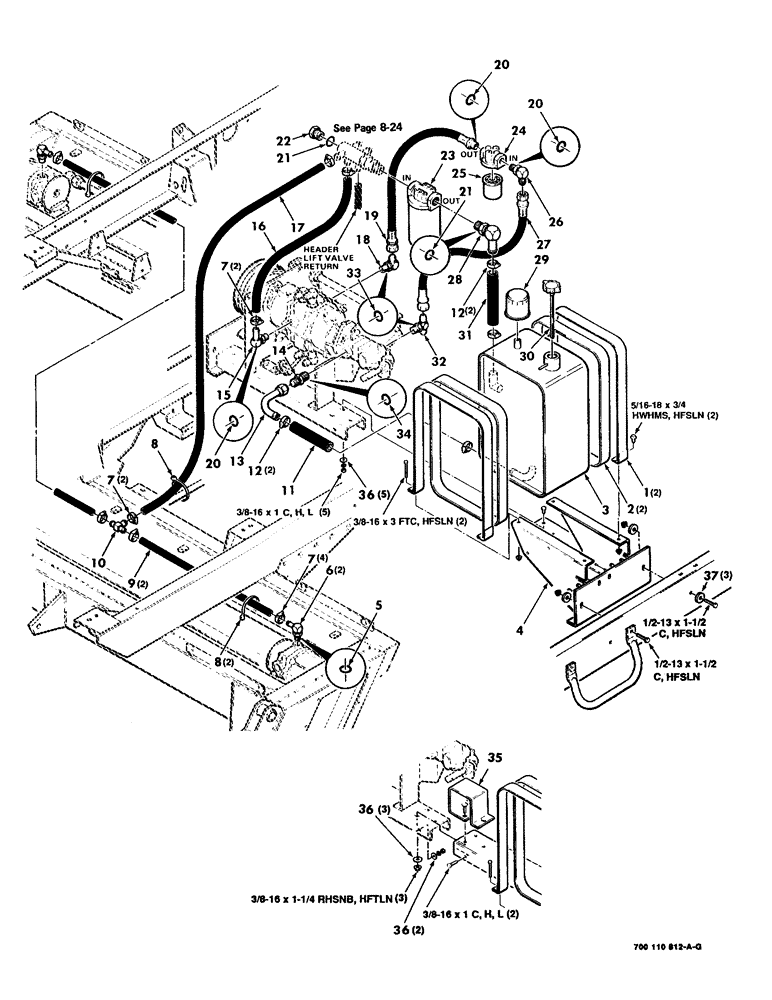

Запчасти Case IH 8830 (8-02) - HYDRAULIC RESERVOIR ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
6602445
STRAP
- reservoir
2шт.
2
8044463
LINING
LINER - strap
2шт.
3
700705539
RESERVOIR, HYDRAULIC
TANK - cooler
1шт.
4
700110893
SUPPORT
- tank
1шт.
5
7037799
O-RING,14-1, 90 Duro, 1.048" ID x .116" Thk
2шт.
6
8046864
FITTING
90 DEGREE BARBED INSERT WITH O-RING
2шт.
7
214-1412
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
CLAMP HOSE
8шт.
8
7724347
STRAP
CABLE TIE
3шт.
9
8842999
HOSE
- hydraulic
2шт.
10
8046971
STEM
TEE - barbed insert
1шт.
11
8843039
HOSE
- hydraulic
1шт.
12
721712
CLIP
CLAMP - hose
4шт.
13
8843443
LINE
- hydraulic
1шт.
14
7746050
ADAPTER
CONNECTOR WITH O-RING
1шт.
15
7846587
ELBOW
90 DEGREE BARBED INSERT WITH O-RING
1шт.
16
700706203
FLEXIBLE HOSE
HOSE - hydraulic
1шт.
17
700705542
SEAL KIT
HOSE - hydraulic
1шт.
18
7046147
ELBOW
90 DEGREE ELBOW WITH O-RING
1шт.
19
8843146
HOSE
- hydraulic
1шт.
20
738484
O-RING
3шт.
21
7037807
O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk
2шт.
22
8746117
PLUG
1шт.
23
8042574
FILTER ASSY
FILTER
1шт.
Ref # 23, per comment in GPN, the filter only is P/N 7738743.
1шт.
24
8843260
FILTER
HEAD - filter
1шт.
25
8040461
FILTER
1шт.
26
746768
ELBOW
90 DEGREE ELBOW WITH O-RING
1шт.
27
8843054
HOSE
- hydraulic
1шт.
28
8046955
FITTING
90 DEGREE BARBED INSERT WITH O-RING
1шт.
29
7825516
FILTER
1шт.
30
8798456
FILLER CAP
CAP - filter
1шт.
31
7796543
HOSE
- hydraulic
1шт.
32
7046980
TEE
WITH O-RING
1шт.
33
738450
O-RING
2шт.
34
738476
O-RING
1шт.
35
700113675
SHIELD
- retainer (S.N. CFH0028114 and on)
1шт.
36
80702
WASHER,0.44" ID x 1" OD x 0.08" Thk
3/8 HARDENED PLAIN WASHER
10шт.
37
700120270
WASHER
- special
3шт.
703249
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 C
3шт.
703959
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
1/2-13 X 1 C
1шт.
703595
HYDRAULIC SYSTEM,Hex, 3/8" - 16 x 3", Gr 5, Full Thd
3/8-16 X 3 FTC
2шт.
700054
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 X 1-1/4 RHSNB
3шт.
704734
FLANGE NUT,Flg, 3/8"-16
3/8-16 HFTLN
3шт.
7883374
SCREW,Hex Washer, 3/8" - 16 x 3/4"
3/8-16 X 3/4 HWHMS
2шт.
701235
BOLT,1/2" - 13 x 1 1/2", Gr 5
1/2-13 X 1-1/2 C
2шт.
Выбрано товаров: 45
