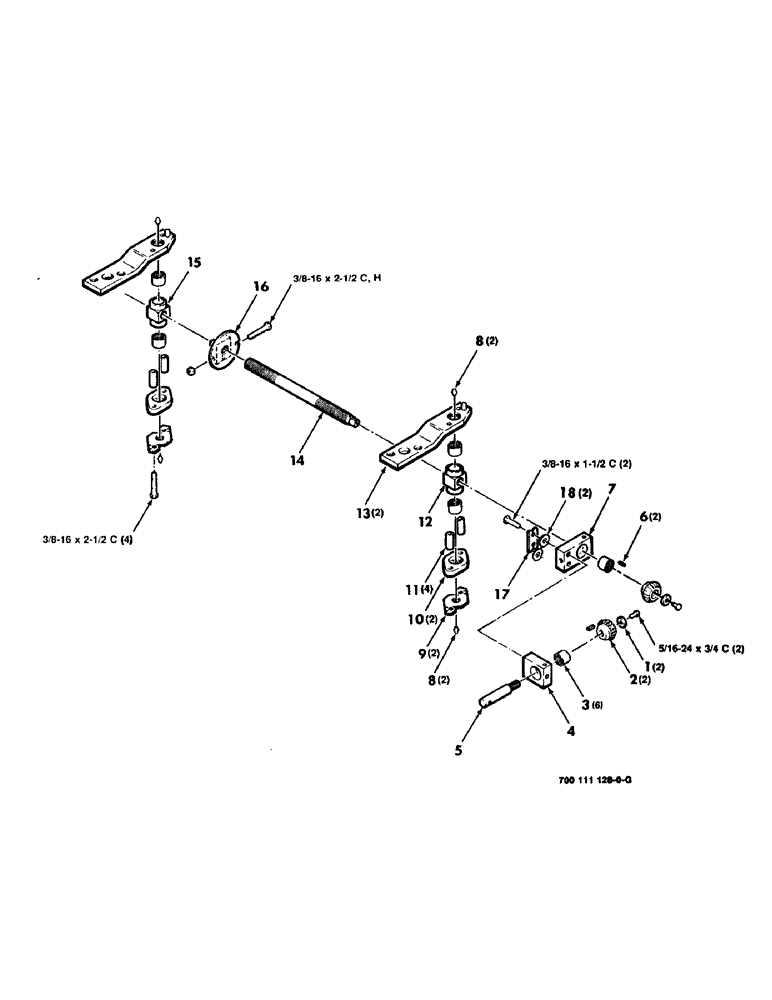

Запчасти Case IH 8830 (5-10) - CONTROL ASSEMBLY (06) - POWER TRAIN

1

700111136

WASHER

2шт.

2

700111135

GEAR

- bevel

2шт.

3

7714611

ROLLER BEARING,17 mm ID x 40 mm OD x 12 mm

- radial

6шт.

4

700111140

BEARING HOUSING,36 mm ID x 19 mm

HOUSING - bearing

1шт.

5

700111141

SHAFT

- input

1шт.

6

700061515

KEY

.188 X .188 X .750 KEY

2шт.

7

700111139

HOUSING,36 mm ID x 19 mm

- bearing

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

9

700111044

COVER PLATE

PLATE - locking

2шт.

10

700111143

FLANGE

2шт.

11

700111144

SPACER

4шт.

12

700111134

HOUSING

- trunnion, right hand thread

1шт.

13

700111129

ARM

- steering

2шт.

14

700111149

SHAFT

- steering

1шт.

15

700111133

HOUSING

- trunnion, left hand thread

1шт.

16

700111145

DISC

- steering

1шт.

17

700111558

LOCKING TAB

TAB - locking

1шт.

18

705657

WASHER

3/8 NARROW PLAIN WASHER

2шт.

7773914

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-24 X 3/4 C

2шт.

703603

SCREW

3/8-16 X 1-1/2 C

2шт.

7701899

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 X 2-1/2 C

5шт.
