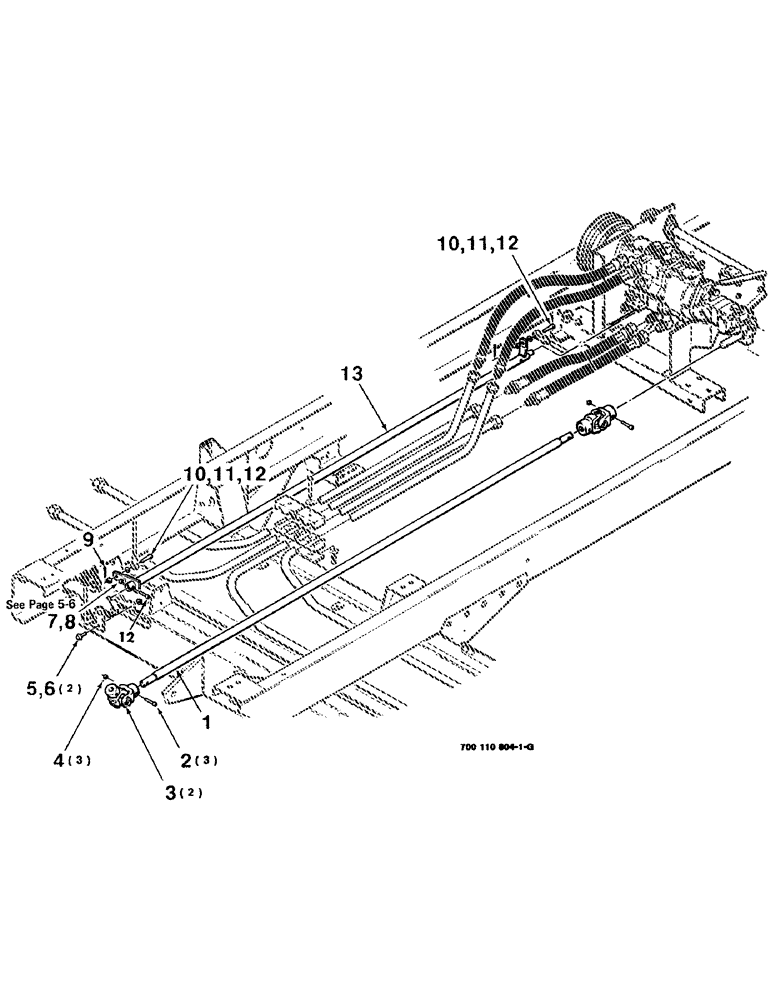

Запчасти Case IH 8830 (5-04) - STEERING AND SPEED CONTROL ARM ASSEMBLIES (05) - STEERING

1

700111125

RIGID TUBE,2144 mm Length

PIPE - steering

1шт.

2

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

5/16-18 X 1-1/2 HSHCS SPL

3шт.

3

700705553

UNIVERSAL JOINT

U-JOINT ASSEMBLY

2шт.

4

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

3шт.

5

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 X 1 HWHMS

2шт.

6

704247

NUT

3/8-16 HFSLN

2шт.

7

71019

HEX SOC SCREW,5/16"-18 x 1 1/4"

5/16-18 X 1-1/4 HSHCS SPL

1шт.

8

704163

LOCK NUT

5/16-18 HTLN GR/B

1шт.

9

62034

BATTERY

3/32 X 3/4 COTTER PIN

1шт.

10

700111557

SCREW

3/8-16 X 1-1/2 C, special

2шт.

11

705038

CONTROL VALVE

3/8"

2шт.

12

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

13

700111006

ROD

- control, speed

1шт.
