(4-22) - CONTROL PANEL ASSEMBLY, ELECTRICAL

Запчасти Case IH 8830 (4-22) - CONTROL PANEL ASSEMBLY, ELECTRICAL (04) - ELECTRICAL SYSTEMS

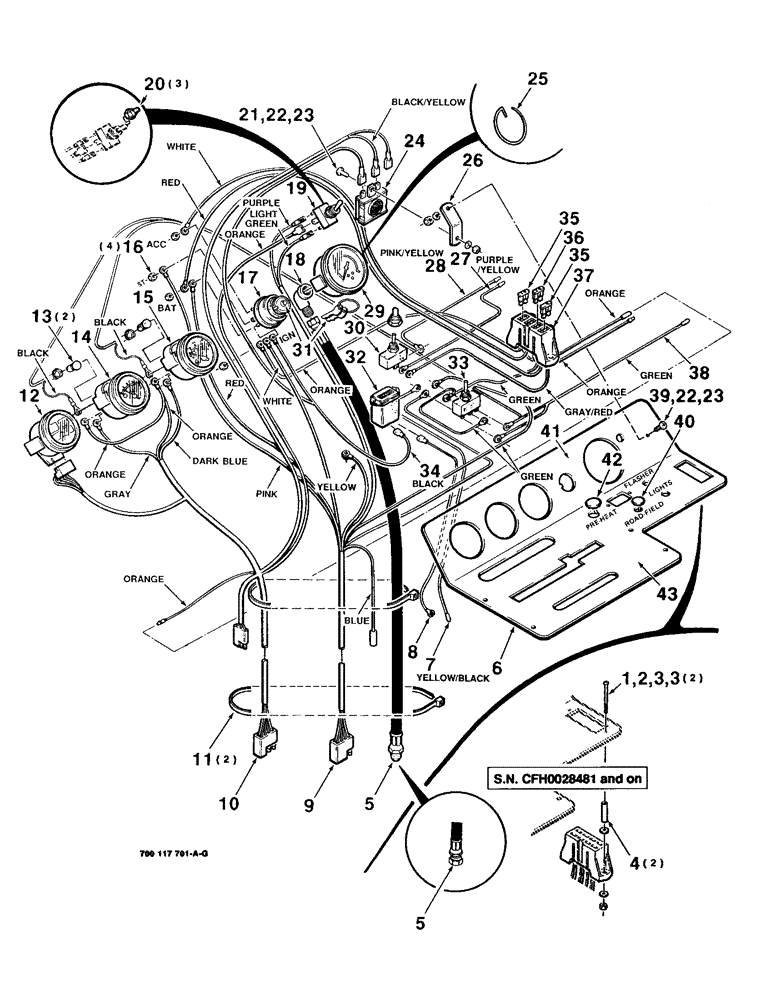

Схема запчастей Case IH 8830 - (4-22) - CONTROL PANEL ASSEMBLY, ELECTRICAL (04) - ELECTRICAL SYSTEMS
42
35
24
13
22
39
12
22
43
26
3
34
28
5
29
10
30
7
3
23
21
8
4
11
16
32
6
38
40
20
36
18
5
19
41
1
31
17
25
23
35
37
2
27
15
9
14
33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700710346

SCREW

#12-24 X 2 CRPHMS

2шт.

2

7774888

NUT

#12-24 H GR2

2шт.

3

705699

WASHER,#12

PLAIN WASHER #12

4шт.

4

700710698

PIN

3/8 X 1-1/4 SLOTTED SPRING PIN

2шт.

5

700705606

FLEXIBLE HOSE

HOSE ASSEMBLY - gauge (S.N. CFH0028001 thru CFH0028455)

1шт.

700710851

HYDRAULIC HOSE,6.35 mm ID x 1500.00 mm, TYPE 100R1 SAE J517

ASSY - Gauge (S/N CFH0028481 and later) 6.35 mm ID x 1500.00 mm, TYPE 100R1 SAE J517

1шт.

6

700115521

PANEL

- console

1шт.

7

700705658

WIRE HARNESS

WIRE - electrical

1шт.

8

700705661

WIRE HARNESS

WIRE - electrical

1шт.

9

700705666

WIRE HARNESS

HARNESS - wiring

1шт.

10

700705664

WIRE HARNESS

HARNESS - wiring

1шт.

11

7041007

STRAP

TIE - cable

2шт.

12

700705644

LEVEL GAUGE CONTROL

GAUGE - indicator light

1шт.

13

700707066

BULB

- lamp

2шт.

14

8022022

FUEL GAUGE

GAUGE - fuel

1шт.

15

700705645

LEVEL GAUGE

GAUGE - temp (Diesel engine only)

1шт.

700712185

GAUGE

- temp (Gas engine only)

1шт.

16

704445

NUT

#10-32 H GR2

4шт.

17

7041205

SWITCH

- starter

1шт.

18

8046666

FITTING

90 DEGREE ELBOW

1шт.

19

700705647

TOGGLE SWITCH

SWITCH

1шт.

20

700707772

BOOT

(Open platform only)

3шт.

21

700700628

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS

1шт.

22

705004

LOCK WASHER

#10 L

2шт.

23

704072

NUT

#10-24 H GR2

2шт.

24

700705642

BUZZER

1шт.

25

700709829

DIPSTICK

INDICATOR

1шт.

26

700111196

MOUNTING PLATE

MOUNTING - buzzer

1шт.

27

700706885

WIRE

- electrical

1шт.

28

700706886

WIRE

- electrical

1шт.

29

700705581

SENDER UNIT

GAUGE - pressure

1шт.

30

700706896

SWITCH

1шт.

31

7020043

KEY

- ignition

1шт.

32

700705648

HOURMETER

METER - hour

1шт.

33

700706897

SWITCH

1шт.

34

700705662

WIRE HARNESS

WIRE - electrical

1шт.

35

700705774

FUSE

2шт.

36

700705776

FUSE

1шт.

37

700706893

FUSE HOLDER

HARNESS - fuse box

1шт.

700710348

FUSE HOLDER

HARNESS - fuse box

1шт.

38

700706888

WIRE HARNESS

HARNESS - wire

1шт.

39

700704837

SCREW,Cross Pan Hd, #10-24 x 3/8"

#10-24 X 3/8 CRPHMS

1шт.

40

720235

BUTTON

- snap in

1шт.

41

700707775

DECAL

- console panel, upper

1шт.

42

7745052

BUSHING

BUTTON - snap in

1шт.

43

700706918

DECAL

- console panel, lower

1шт.
