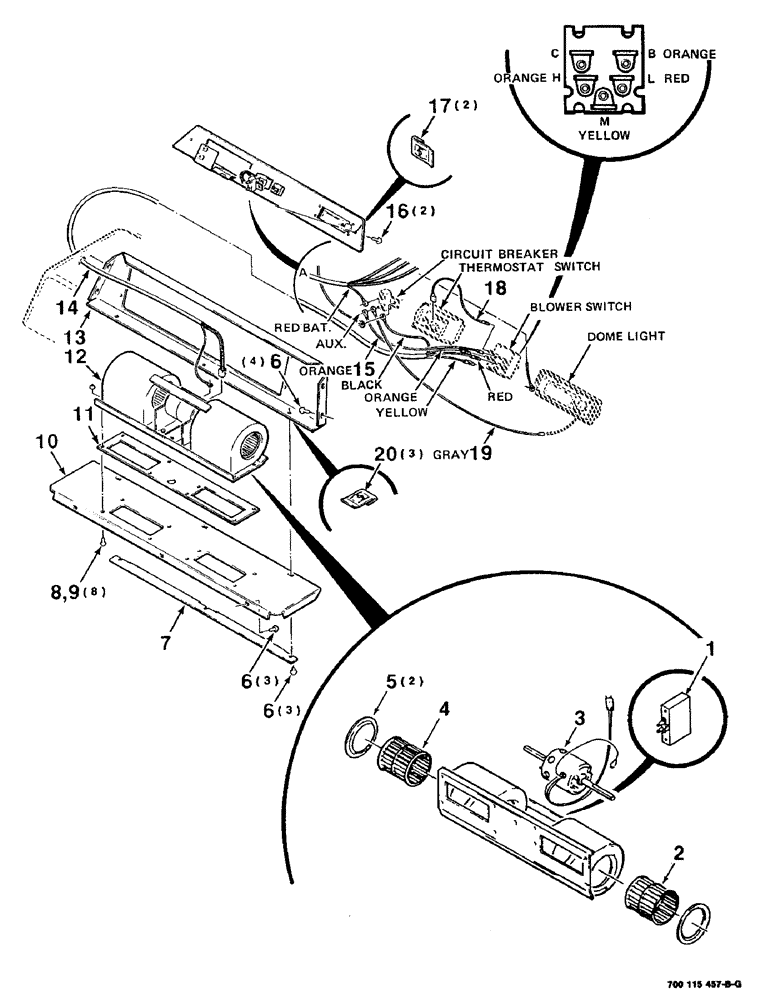

Запчасти Case IH 8830 (4-16) - CAB BLOWER ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

700710564

RESISTOR

(CFH0028510 and later)

1шт.

2

7025869

BLOWER

WHEEL - left

1шт.

3

7025851

MOTOR, ELECTRIC

MOTOR - blower (S.N. CFH0028001 thru CFH0028509)

1шт.

700710562

ELECTRIC MOTOR

MOTOR - blower (S.N. CFH0028510 thru CFH0028955)

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

8830, Reman For New P/N's 700710562 & 190333A1,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

700713942

MOTOR

- blower (S.N. CFH0028956 and later)

1шт.

4

7025877

BLOWER,Fan

BLOWER WHEEL - right

1шт.

5

7724446

RING

- inlet (S.N. CFH0028001 thru CFH0028509)

2шт.

700710563

RING

- inlet (S.N. CFH0028510 and later)

2шт.

6

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

10шт.

7

700115094

RETAINER

1шт.

8

7771355

BOLT,Hex Flange, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HFSS

8шт.

9

523282

SERRATED NUT,Flg, USR, 1/4"-20

1/4-20 HFSLN

8шт.

10

700110136

COVER

- blower

1шт.

11

8020273

SEAL

- blower

1шт.

12

8721573

BLOWER

ASM. (Includes items 1, 2, 3, 4 & 5) (S.N. CFH0028001 thru CFH0028509)

1шт.

700710548

FAN

BLOWER ASM. (Includes items 1, 2, 3, 4 & 5) (S.N. CFH0028510 and later)

1шт.

13

700110135

BULKHEAD

- evaporator

1шт.

14

700705130

WIRE HARNESS

HARNESS - wire (CFH0028001 thru CFH0028509)

1шт.

700710547

WIRE HARNESS

HARNESS - wire (S.N. CFH0028510 and later)

1шт.

15

700705126

WIRE

- electrical

1шт.

16

7883283

SCREW,Hex Washer, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

2шт.

17

700705135

NUT

1/4-20 SPEED NUT

2шт.

18

8799462

ELECTRICAL WIRE

WIRE - electrical

1шт.

19

700705122

WIRE

- electrical

1шт.

20

131-637

SPRING NUT,Ret, J, 5/16"-18

5/16-18 SPEED NUT

3шт.
