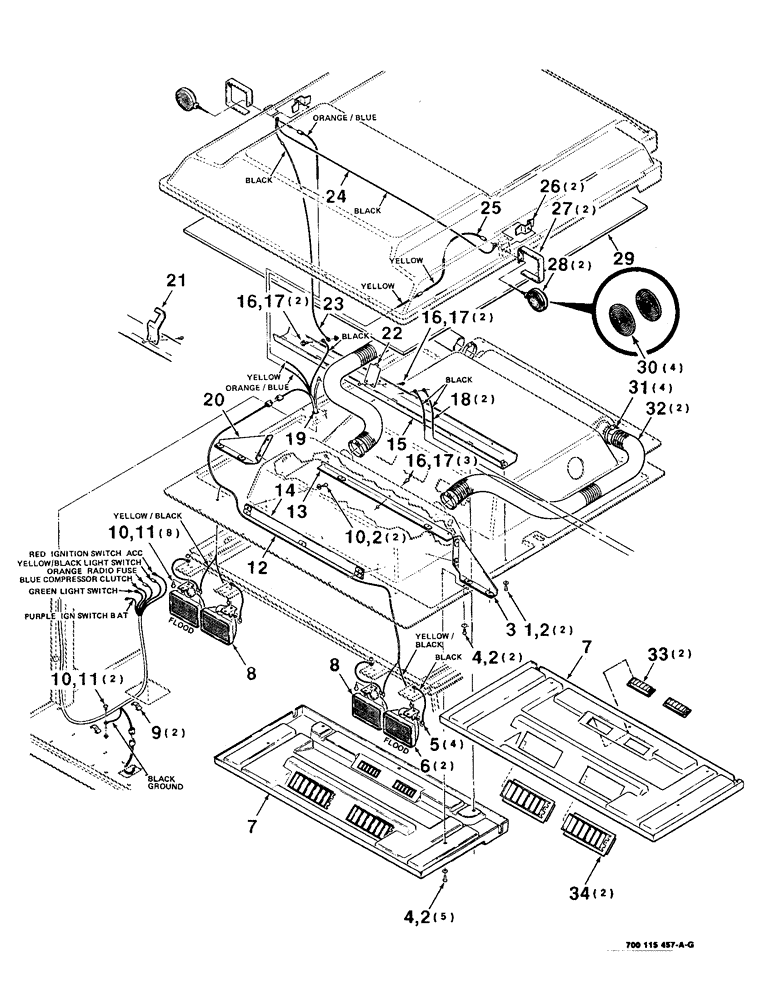

Запчасти Case IH 8830 (4-14) - CAB BLOWER, LIGHTS AND WIRING ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 X 1/2 C

2шт.

2

700709602

WASHER,5/16"

5/16 WIDE PLAIN WASHER

11шт.

3

700110129

SUPPORT

WA - left

1шт.

4

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 X 1 HWHMS

7шт.

5

700705124

WIRE

- electrical

4шт.

6

700705183

HEADLAMP

HEADLIGHT - flood

2шт.

7

700111086

COVER

(Does not include louvers)(S.N. CFH0028001 thru CFH0028455)

1шт.

700121359

COVER

ASSEMBLY (Includes lourvers) (S.N. CFH0028481 and later)

1шт.

8

700705184

WORK LAMP

HEADLIGHT

2шт.

9

7745193

CLIP

2шт.

10

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

12шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

10шт.

12

700706890

WIRE HARNESS

HARNESS - wiring

1шт.

13

700115093

SUPPORT

ANGLE WA - support

1шт.

14

700110127

STRAP

WA

1шт.

15

700110145

SUPPORT

CHANNEL WA - support

1шт.

16

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

7шт.

17

523282

SERRATED NUT,Flg, USR, 1/4"-20

1/4-20 HFSLN

7шт.

18

700705125

WIRE

- electrical

2шт.

19

700706891

WIRE HARNESS

HARNESS - wiring

1шт.

20

700110132

SUPPORT

WA - right

1шт.

21

700110124

SUPPORT

- radio (S.N. CFH0028001 thru CFH0028895)

1шт.

22

700124527

SUPPORT

- radio (S.N. CFH0028896 and later)

1шт.

23

700705123

WIRE

- electrical

1шт.

24

700705143

WIRE

- electrical

1шт.

25

700705121

WIRE

- electrical

1шт.

26

700117856

REINFORCEMENT

- light

2шт.

27

700110126

SHIELD

- flasher light

2шт.

28

700708036

SIDE LAMP ASSY

LIGHT - flasher (Includes item 30)

2шт.

29

700705148

ROOF LINING

COVER - foam

1шт.

30

700711749

LENS

- flasher

4шт.

31

7720063

CLAMP

4шт.

32

700705136

HOSE

- air ducting

2шт.

33

7807753

ASSEMBLY

LOUVER ASSEMBLY (S.N. CFH0028001 thru CFH0028455)

2шт.

34

7793649

VENTILATOR

LOUVER ASSEMBLY (S.N. CFH0028001 thru CFH0028455)

2шт.
