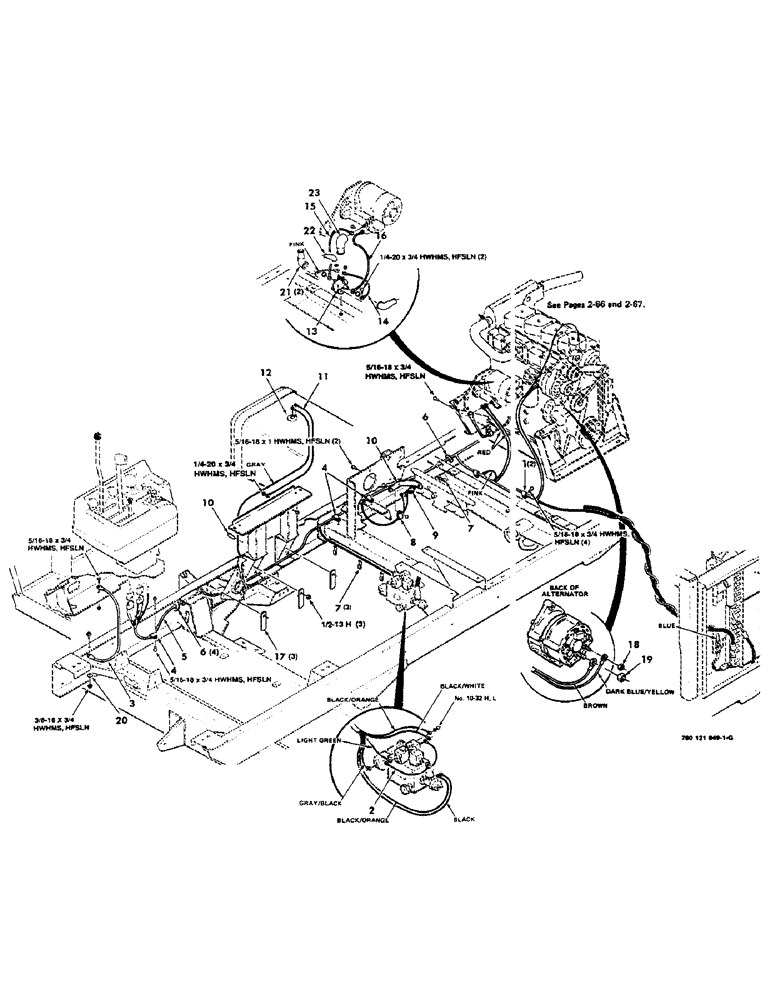

Запчасти Case IH 8830 (4-08) - ENGINE WIRING ASSEMBLY, FRONT SECTION, DIESEL (04) - ELECTRICAL SYSTEMS

1

751487

CLAMP

LINE

2шт.

2

700705693

WIRE HARNESS

HARNESS - wiring

1шт.

3

722868

CABLE

WIRE - electrical

1шт.

4

756460

CLAMP

- line

3шт.

5

700708491

HARNESS

- wiring

1шт.

700712883

HARNESS

- wiring

1шт.

6

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

5шт.

7

41152

CLIP

- wiring

5шт.

8

700708090

CLAMP

- line

1шт.

9

8025637

SWITCH

- backup

1шт.

10

700111843

ANGLE

- switch mounting

1шт.

11

700705659

WIRE HARNESS

WIRE - electrical

1шт.

12

700706468

SENDER UNIT

SENDER - fuel level

1шт.

The gasket for ref # 12, sendor is 14556. bj 7/9/99

1шт.

13

8722639

SOLENOID SWITCH

SOLENOID

1шт.

14

8722621

ELECTRICAL WIRE

WIRE - electrical

1шт.

15

700707088

WIRE

- electrical

1шт.

16

700708568

ELECTRICAL WIRE

WIRE - electrical

1шт.

17

700121358

STRAP

3шт.

18

7774078

NUT

M 5 X 0.8 H

1шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

M 8 X 1.25 H

1шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

1шт.

21

700707961

SHIELD

- terminal

2шт.

22

700707064

SHIELD

- terminal

1шт.

23

700707065

SHIELD

- terminal

1шт.

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

3шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

7шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 X 1 HWHMS

2шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

1шт.
