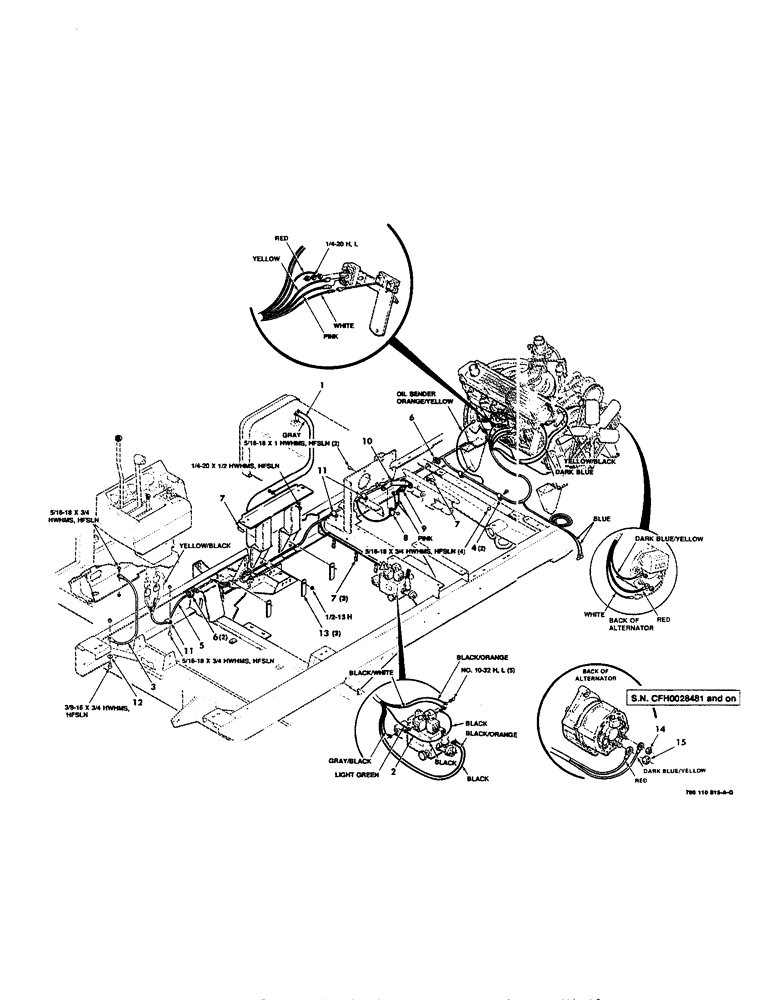

Запчасти Case IH 8830 (4-04) - ENGINE WIRING ASSEMBLY, FRONT SECTION, GAS (04) - ELECTRICAL SYSTEMS

1

700705659

WIRE HARNESS

WIRE - electrical

1шт.

2

700705693

WIRE HARNESS

HARNESS - wire

1шт.

3

722868

CABLE

WIRE - electrical

1шт.

4

751487

CLAMP

2шт.

5

700704998

WIRE HARNESS

HARNESS - wire (S.N. CFH0028001 - 0028455)

1шт.

700710070

HARNESS

- wire (S.N. CFH0028481 and on)

1шт.

6

727487

SCREW

3шт.

7

41152

CLIP

5шт.

8

700708090

CLAMP

3шт.

9

8025637

SWITCH

1шт.

10

700111843

ANGLE

- switch mounting

1шт.

11

756460

CLAMP

- wiring

3шт.

12

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

1шт.

13

700121358

STRAP

3шт.

14

7774078

NUT

M5 X 0.8 H

1шт.

15

1702893

NUT

M8 X 1.25 H

1шт.

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 X 1/2 HWHMS

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

6шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 X 1 HWHMS

2шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

1шт.
