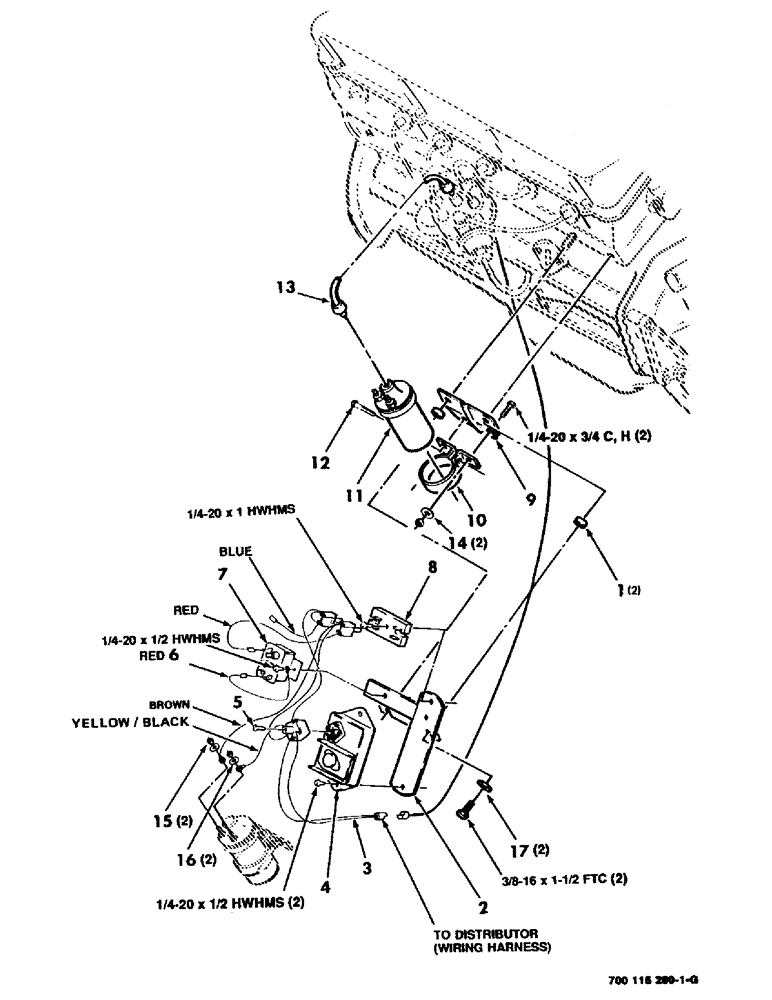

Запчасти Case IH 8830 (4-02) - ELECTRICAL ENGINE ACCESSORIES ASSEMBLY, GAS (04) - ELECTRICAL SYSTEMS

1

6489231

SPACER

2шт.

2

6829600

MOUNTING PARTS

STRAP - mounting, ignition

1шт.

3

8025694

HARNESS

- wire

1шт.

4

8021974

CONTROL

UNIT

1шт.

5

743021

SCREW

1шт.

6

8020745

ELECTRICAL WIRE

WIRE - electrical

1шт.

7

8020729

RELAY

- electrical

1шт.

8

8021966

INDICATOR LIGHT

- ballast

1шт.

9

7724180

BRACKET

- coil

1шт.

10

700709183

BRACKET

- coil

1шт.

11

700709182

COIL

1шт.

12

700709184

SCREW

- special (Includes nut)

1шт.

13

700710068

ELECTRICAL WIRE

WIRE - coil

1шт.

14

705517

WASHER

1/4 HARDENED PLAIN WASHER

2шт.

15

704445

NUT

NO. 10-32 H

2шт.

16

495-31022

WASHER,#10

NO. 10 PLAIN WASHER

2шт.

17

705533

WASHER

3/8 HARDENED PLAIN WASHER

2шт.

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 C

2шт.

873083

SCREW

3/8-16 X 1-1/2 FTC

2шт.

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 X 1/2 HWHMS

3шт.

7883283

SCREW,Hex Washer, 1/4" - 20 x 1"

1/4-20 X 1 HWHMS

1шт.
