(3-14) - FUEL FILTER ASSEMBLY, 720714 FUEL FILTER ASSEMBLY COMPLETE

Запчасти Case IH 8830 (3-14) - FUEL FILTER ASSEMBLY, 720714 FUEL FILTER ASSEMBLY COMPLETE (03) - FUEL SYSTEM

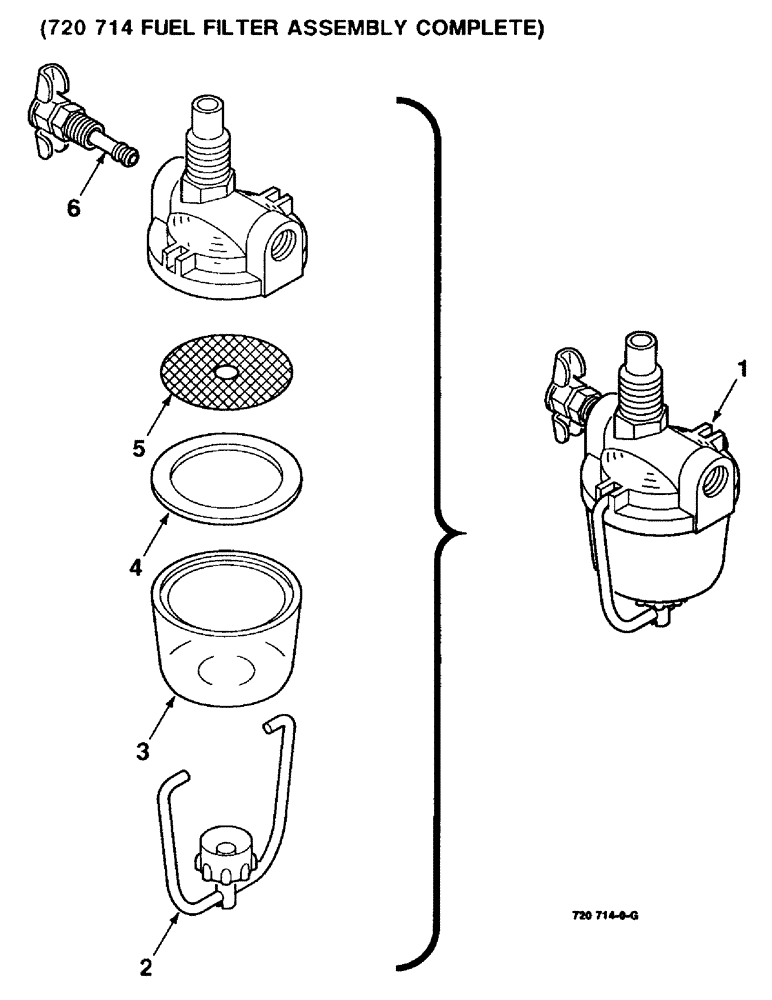

Схема запчастей Case IH 8830 - (3-14) - FUEL FILTER ASSEMBLY, 720714 FUEL FILTER ASSEMBLY COMPLETE (03) - FUEL SYSTEM
1
2
4
6
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

720714

STRAINER ASSY.

FUEL FILTER COMPLETE

1шт.

2

700712690

COLLAR CLAMP

BAIL ASSEMBLY (Includes stud, nut & cup)

1шт.

3

700712691

BOWL

- glass

1шт.

4

700712693

GASKET

- bowl

1шт.

5

700712692

SCREEN

- filter

1шт.

6

700712694

VALVE

ASSEMBLY - filter

1шт.
