(3-06) - AIR BREATHER ASSEMBLY, GAS ENGINE, SERIAL NUMBER CFH0028001 THRU CFH0028417

Запчасти Case IH 8830 (3-06) - AIR BREATHER ASSEMBLY, GAS ENGINE, SERIAL NUMBER CFH0028001 THRU CFH0028417 (03) - FUEL SYSTEM

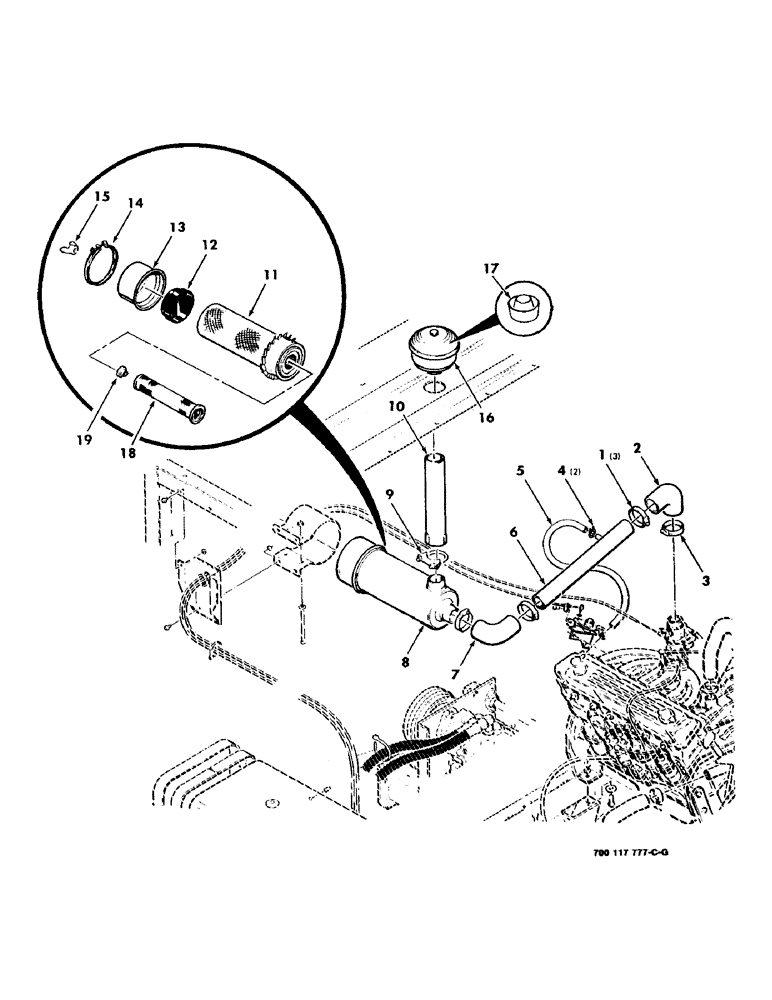

Схема запчастей Case IH 8830 - (3-06) - AIR BREATHER ASSEMBLY, GAS ENGINE, SERIAL NUMBER CFH0028001 THRU CFH0028417 (03) - FUEL SYSTEM
4
16
2
14
6
11
3
5
19
1
12
8
18
13
17
9
7
15
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

720649

CLAMP

- hose

3шт.

2

700708247

FLEXIBLE HOSE

HOSE - air cleaner

1шт.

3

721365

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP - hose

1шт.

4

7020001

CLAMP

- hose

2шт.

5

8021651

HOSE,15.88 mm ID x 444.00 mm, SAE 30R2

1шт.

6

700117924

TUBE

HOSE - air cleaner

1шт.

7

700708468

FLEXIBLE HOSE

HOSE - air cleaner

1шт.

8

700708223

AIR CLEANER

ASSEMBLY

1шт.

9

722769

CLAMP

- exhaust

1шт.

10

700708464

SUPPORT,76.2 mm OD, 375 mm Length

TUBE - exhaust extension

1шт.

11

700708235

ELEMENT

ASSEMBLY - primary

1шт.

12

722215

BAFFLE

1шт.

13

700708237

BOWL

CUP ASSEMBLY

1шт.

14

7741226

CLAMP

1шт.

15

7741218

NUT, WING

WING NUT WITH GASKET

1шт.

16

700708221

AIR PRE-CLEANER ASSY

PRE-CLEANER

1шт.

17

7041494

BOWL

- pre-cleaner

1шт.

18

700708236

ELEMENT

ASSEMBLY - secondary

1шт.

19

700708238

NUT

1шт.
