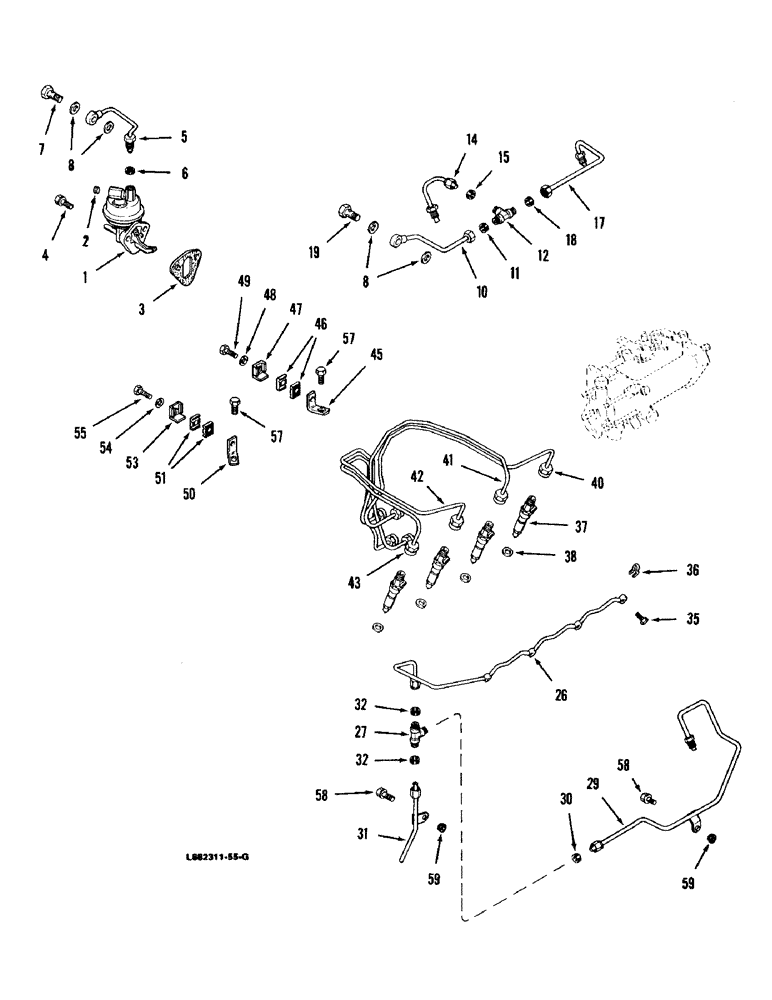

Запчасти Case IH 8830 (2-40) - FUEL INJECTION SYSTEM, DIESEL (03) - FUEL SYSTEM

1

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

2

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - square socket, 1/4 in. PT

1шт.

3

J904044

GASKET

- fuel lift pump

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY - fuel, lift pump to filter

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - tube

1шт.

7

J903035

BANJO BOLT

BOLT - banjo hex, M12 x 1.5 x 24 MM

1шт.

8

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 MM (Replaces J903037)

4шт.

10

J905364

FUEL TUBE

TUBE ASSEMBLY - fuel supply, Serial Range: filter-tee

1шт.

11

222-103

SLEEVE,5/16" Tube

- tube, 5/16 in.

1шт.

12

J905353

TEE

- union, 9/16-24 NF thread

1шт.

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - hex, 1/2-24 in. thread (Discard before assembly)

3шт.

14

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY - fuel supply, tee to rear of injection pump

2шт.

15

222-103

SLEEVE,5/16" Tube

- tube, 5/16 in.

1шт.

17

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE ASSEMBLY - fuel supply, tee to front of injection pump

1шт.

18

222-103

SLEEVE,5/16" Tube

- tube, 5/16 in.

1шт.

19

J905860

BANJO BOLT

BOLT - banjo hex, special

1шт.

26

J909695

FUEL TUBE

MANIFOLD ASSEMBLY - fuel return

1шт.

27

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Union

1шт.

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex (Discard before assembly) 3/8"-24, 45º Fl, Comp

3шт.

29

J905703

FUEL TUBE,4.76 mm OD x 661 mm L

TUBE ASSEMBLY - fuel return, tee to pump

1шт.

30

222-103

SLEEVE,5/16" Tube

- tube, 5/16 in.

1шт.

31

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return, tee to fuel tank

1шт.

32

222-103

SLEEVE,5/16" Tube

- tube, 5/16 in.

1шт.

35

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

36

J903380

SEAL

- connector

4шт.

37

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, 9 MM tip

4шт.

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, 7 MM tip

4шт.

38

REF

INSTRUCTION

SEAL - injector, 9 MM tip

4шт.

REF

INSTRUCTION

SEAL - injector, 7 MM tip

4шт.

40

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

TUBE ASSEMBLY - fuel injector, no. 1 cylinder

1шт.

41

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

TUBE ASSEMBLY - fuel injector, no. 2 cylinder

1шт.

42

J903524

FUEL TUBE

TUBE ASSEMBLY - fuel injector, no. 3 cylinder

1шт.

43

J903525

FUEL TUBE

TUBE ASSEMBLY - fuel injector, no. 4 cylinder

1шт.

45

J919292

SUPPORT

BRACKET - fuel tube

1шт.

46

J917746

CLAMP

ISOLATOR - fuel tube

2шт.

47

CURJ904711

CLAMP

PLATE - clamp, fuel tube

1шт.

48

J903723

WASHER

- lock, M5

1шт.

49

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

50

J919292

SUPPORT

BRACKET - fuel tube

1шт.

51

J917746

CLAMP

ISOLATOR - fuel tube

2шт.

53

J904711

SUPPORT

PLATE - clamp, fuel tube

1шт.

54

J903723

WASHER

- lock, M5

1шт.

55

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

1шт.

57

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- hex special

2шт.

58

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

59

J900267

SEAL

ASSEMBLY - cover bolt

2шт.
