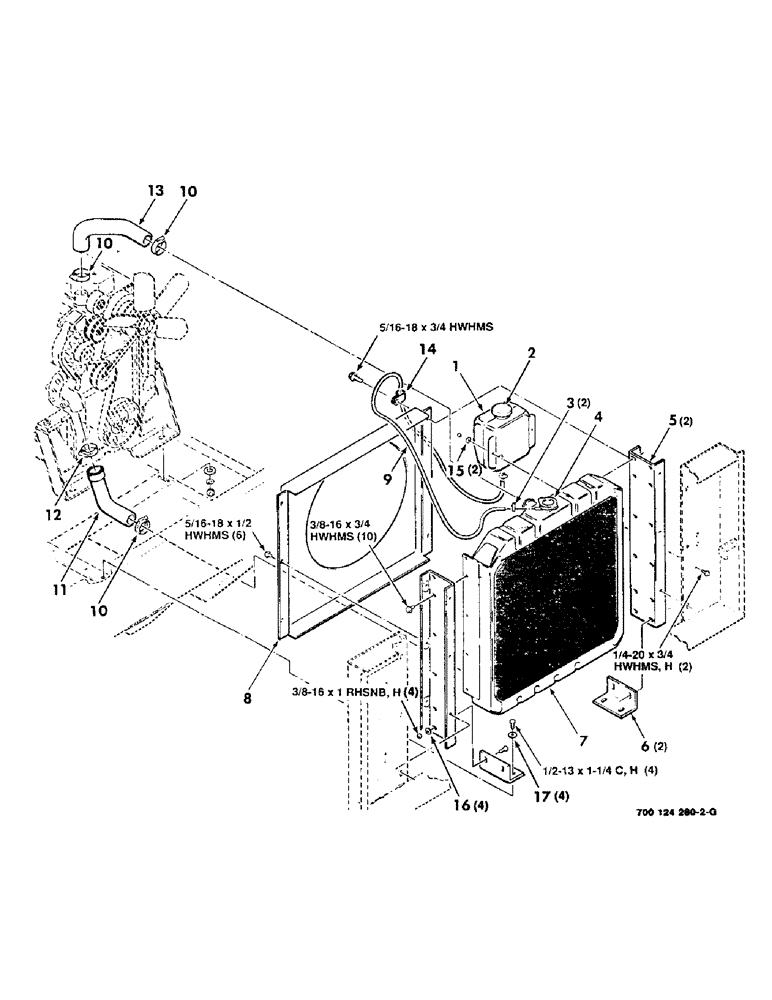

Запчасти Case IH 8830 (2-58) - RADIATOR AND MOUNTING ASSEMBLY, DIESEL ENGINE (02) - ENGINE

1

700705626

TANK

- overflow

1шт.

2

700706181

CAP

- overflow

1шт.

3

7721020

HOSE CLAMP

CLAMP

2шт.

4

700708265

CAP

- radiator

1шт.

5

700115012

SUPPORT

- radiator

2шт.

6

700115015

SUPPORT

ANGLE - mounting

2шт.

7

700708264

RADIATOR

1шт.

8

700117910

SHROUD

- fan

1шт.

9

2400028

HOSE,0.31" ID x 48.03", SAE 30R1

overflow 0.31" ID x 48.03", SAE 30R1

1шт.

10

720219

CLAMP

- hose

3шт.

11

700708469

HOSE,44.45 mm ID, 58.00 mm ID x 266.00 mm, SAE 20R4 Class C Per SAE J20

RADIATOR HOSE, , Lower 44.45 mm ID, 58.00 mm ID x 266.00 mm, SAE 20R4 Class C Per SAE J20

1шт.

12

720870

CLAMP

- hose

1шт.

13

700708466

HOSE,44.45 mm ID x 310.00 mm, SAE 20R4 Class C Per SAE J20

RADIATOR HOSE, , Upper 44.45 mm ID x 310.00 mm, SAE 20R4 Class C Per SAE J20

1шт.

14

755744

CLAMP

- line

1шт.

15

705517

WASHER

1/4 HARDENED PLAIN WASHER

2шт.

16

705533

WASHER

3/8 HARDENED PLAIN WASHER

4шт.

17

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 C

4шт.

700047

BOLT

3/8-16 X 1 RHSNB

4шт.

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

2шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HWHMS

6шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

1шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

10шт.
