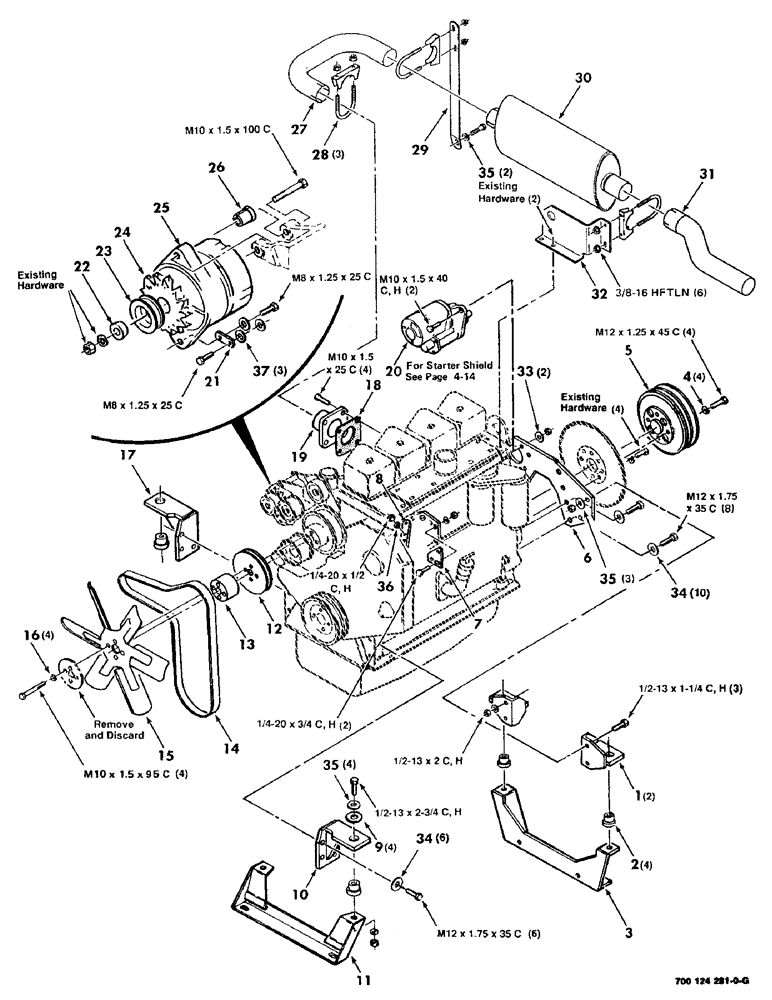

Запчасти Case IH 8830 (2-56) - ENGINE ACCESSORIES AND MOUNTING ASSEMBLY, CUMMINS DIESEL (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
700117904
MOUNTING PARTS
MOUNTING - rear
2шт.
2
700707039
RUBBER MOUNTING
MOUNT - rubber
4шт.
3
700117907
PLATE
PLATE - rear
1шт.
4
700708548
WASHER
WASHER - hardened (12 MM)
4шт.
5
700117918
SHEAVE
SHEAVE - 2B, powerband
1шт.
6
700117898
LARGE PLATE
PLATE, LARGE PLATE - rear
1шт.
7
700117916
MOUNTING PARTS
MOUNTING - cable
1шт.
8
700117917
STRAP
STRAP
1шт.
9
457432
WASHER
WASHER
4шт.
10
700117888
MOUNTING PARTS
MOUNTING - front, left
1шт.
11
700117919
MOUNTING PARTS
MOUNTING - front
1шт.
12
700708245
SHEAVE
SHEAVE
1шт.
13
700708244
SPACER
SPACER - fan
1шт.
14
700708233
BELT,1363.10 mm L
Fan
1шт.
15
700708243
FAN
FAN
1шт.
16
700708499
WASHER
WASHER - hardened (10 MM)
4шт.
17
700117889
MOUNTING PARTS
MOUNTING - front, right
1шт.
18
700708266
GASKET
GASKET
1шт.
19
700117914
PIPE
PIPE - exhaust
1шт.
20
700708239
STARTING MOTOR
STARTER
1шт.
REF# 20 starter is the same as case p/n 1987559c1. See 8840 catalog page 10-54 for parts breakdown. This is per print of p/n 700708239.
1шт.
21
700117858
STRAP
STRAP
1шт.
22
700708232
RETAINER
RETAINER - pulley
1шт.
23
700708231
PULLEY
PULLEY - alternator
1шт.
24
700708240
FAN
FAN - alternator
1шт.
25
700710688
ALTERNATOR
ALTERNATOR
1шт.
25
A187873
ALTERNATOR,12V, 65A
Alternator, 14V, 65 Amp
1шт.
25
AR187873
REMAN-ALTERNATOR
65A 12V
1шт.
25
AC187873
CORE-ALTERNATOR
Return Number
1шт.
25
A187873GV
ALTERNATOR
Value, 12V, 65A
1шт.
25
87297230
REMAN-ALTERNATOR
REMANUFACTURED 12 VOLT 65 AMP ALTERNATOR
1шт.
25
87297231
CORE-ALTERNATOR
Return Number, 12 VOLT 65 AMP ALTERNATOR
1шт.
26
700708229
SPACER
SPACER
1шт.
27
700708470
PIPE
PIPE - exhaust
1шт.
28
700713238
CLAMP
CLAMP - exhaust
3шт.
29
700126436
STRAP
STRAP
1шт.
30
700708242
MUFFLER
MUFFLER
1шт.
700708250
MUFFLER
MUFFLER (Spark arrestor)
1шт.
31
700708766
PIPE
PIPE - extension
1шт.
32
700126434
MOUNTING PARTS
MOUNTING - muffler
1шт.
33
1705318
WASHER
10 PLAIN WASHER
2шт.
34
1705037
WASHER
12 PLAIN WASHER
16шт.
35
705541
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
1/2 HARDENED PLAIN WASHER
8шт.
36
705517
WASHER
1/4 HARDENED PLAIN WASHER
1шт.
37
1703321
WASHER,M8 x 16 x 1.6
8 PLAIN WASHER
3шт.
7772197
SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8
M8 X 1.25 X 25 C
2шт.
7703457
HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5
1/4-20 X 3/4 C
2шт.
700708349
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
M10 X 1.5 X 25 C
4шт.
7771728
SCREW
M10 X 1.5 X 40 C
2шт.
700708764
BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8
M10 X 1.5 X 95 C
4шт.
7771975
SCREW,Hex, M10 x 100mm, Cl 8.8
M10 X 1.5 X 100 C
1шт.
7772379
SCREW,Hex, M12 x 1.75 x 35mm, Cl 8.8
M12 X 1.75 X 35 C
14шт.
700708246
CAPSCREW,M12 x 1.25 x 45mm, Cl 12.9
M12 X 1.25 X 45 C
4шт.
7701188
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 X 1-1/4 C
3шт.
7701675
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2-13 X 2 C
1шт.
703736
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
1/2-13 X 2-3/4 C
4шт.
7704398
NUT,M10, Cl 8
M10 X 1.5 H
2шт.
704007
NUT,1/4"-20, G5
1/4-20 H
3шт.
704031
NUT
1/2-13 H
8шт.
704734
FLANGE NUT,Flg, 3/8"-16
3/8-16 HFTLN GRD. G
6шт.
To convert 8830 muffler mounting to that found on the 8825, order the following:
1шт.
1 of 700133881 Clamp
1шт.
1 of 700133879 Mounting-Muffler
1шт.
1 of 700133880 Mounting-Muffler
1шт.
4 of D52276 Mounting-Rubber
1шт.
4 of 700117552 Washer-special
1шт.
4 of 413-624 3/8-16 x 1-1/2 C
1шт.
10 of 232-5316 3/8-16 HFTLN GR/G
1шт.
2 of 413-620 3/8-16 x 1-1/4 C
1шт.
2 of 496-11041 3/8 hardened flatwasher
1шт.
1 of 700133885 Strap-muffler
1шт.
1 of 700133883 Strap-muffler
1шт.
1 of 413-832 1/2-13x2 C
1шт.
2 of 495-21056 1/2 Hardened plain washer
1шт.
1 of 425-108 1/2-13 H
1шт.
These items are shown of page 2-4 in the 8825 parts book. By: tsg bc 8/5/97
1шт.
