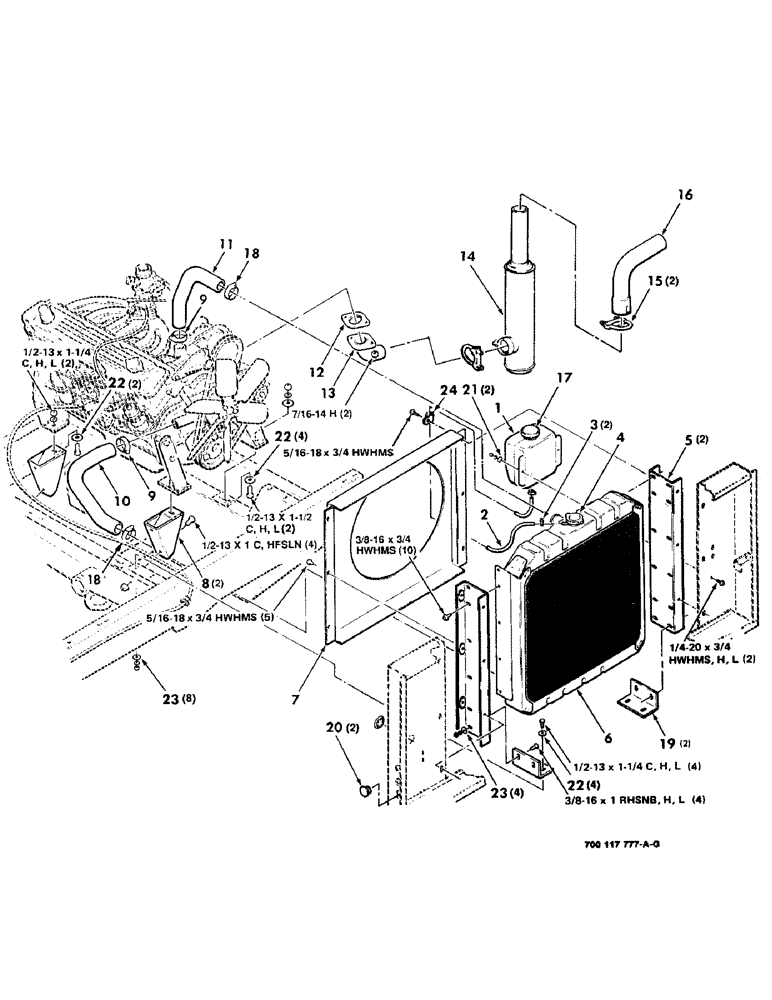

Запчасти Case IH 8830 (2-54) - RADIATOR, EXHAUST AND ENGINE MOUNTING ASSEMBLY, GAS (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
700705626
TANK
- overflow
1шт.
2
2400028
HOSE,0.31" ID x 48.03", SAE 30R1
overflow 0.31" ID x 48.03", SAE 30R1
1шт.
3
7721020
HOSE CLAMP
CLAMP - line
2шт.
4
700708265
CAP
- radiator (Use with 15 lb. system)
1шт.
5
700115012
SUPPORT
- radiator
2шт.
6
700708264
RADIATOR
(15 lb. system)
1шт.
7
700111964
SHROUD
- fan
1шт.
8
700110816
ENGINE MOUNT
MOUNTING ENGINE
2шт.
9
721712
CLIP
CLAMP - hose
2шт.
10
700707781
FLEXIBLE HOSE,38.10 mm ID, 44.45 mm ID x 260.00 mm, SAE 20R4 Class SC
RADIATOR HOSE, , Lower 38.10 mm ID, 44.45 mm ID x 260.00 mm, SAE 20R4 Class SC
1шт.
11
700704974
FLEXIBLE HOSE,38.10 mm ID, 44.45 mm ID x 153.00 mm, SAE 20R4 Class SC, SAE J20
RADIATOR HOSE, , Upper 38.10 mm ID, 44.45 mm ID x 153.00 mm, SAE 20R4 Class SC, SAE J20
1шт.
12
744656
GASKET
- exhaust
1шт.
13
700111966
EXHAUST SYSTEM PIPE
TUBE - exhaust
1шт.
14
41244
MUFFLER
1шт.
15
720664
CLAMP
- exhaust
2шт.
16
700707235
EXHAUST SYSTEM PIPE
PIPE - exhaust, upper
1шт.
17
700706181
CAP
1шт.
18
720219
CLAMP
2шт.
19
700115015
SUPPORT
ANGLE - mounting
2шт.
20
7845464
PLUG
2шт.
21
705517
WASHER
1/4 HARDENED PLAIN WASHER
2шт.
22
705541
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
1/2 HARDENED PLAIN WASHER
8шт.
23
80702
WASHER,0.44" ID x 1" OD x 0.08" Thk
3/8 HARDENED PLAIN WASHER
12шт.
24
755744
CLAMP
- hose
1шт.
7703457
HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5
1/4-20 X 3/4 C
2шт.
703249
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 C
4шт.
703959
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
1/2-13 X 1 C
4шт.
7701188
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 X 1-1/4 C
4шт.
701235
BOLT,1/2" - 13 x 1 1/2", Gr 5
1/2-13 X 1-1/2 C
2шт.
7883275
SCREW,Hex Washer, 1/4" - 20 x 3/4"
1/4-20 X 3/4 HWHMS
2шт.
7883325
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
5/16-18 X 3/4 HWHMS
6шт.
7883374
SCREW,Hex Washer, 3/8" - 16 x 3/4"
3/8-16 X 3/4 HWHMS
10шт.
Выбрано товаров: 33
