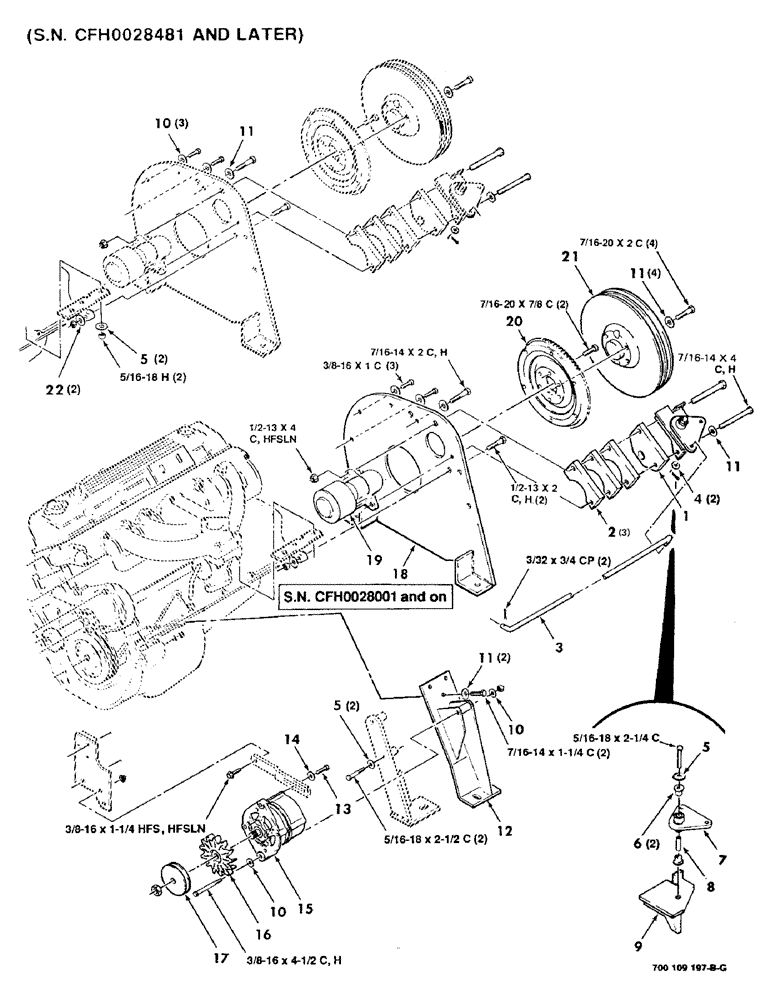

Запчасти Case IH 8830 (2-52) - ENGINE ACCESSORIES AND MOUNTING ASSEMBLY, GAS, SERIAL NUMBER CFH0028481 AND LATER (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
700109200
PLATE
PLATE
1шт.
2
700109201
PLATE
PLATE
3шт.
3
6605349
LINK
LINK - throttle
1шт.
4
705517
WASHER
1/4 HARDENED PLAIN WASHER
2шт.
5
705525
WASHER
5/16 HARDENED PLAIN WASHER
5шт.
6
756452
NYLON BEARING
BEARING - nylon
2шт.
7
6605299
ARM ASSY.
BELLCRANK
1шт.
8
6605323
BUSHING
BUSHING
1шт.
9
700109202
SUPPORT
MOUNT - control
1шт.
10
705533
WASHER
3/8 HARDENED PLAIN WASHER
5шт.
11
705558
WASHER
7/16 HARDENED PLAIN WASHER
8шт.
12
700120737
SUPPORT
MOUNTING - engine (S.N. CFH0028481 and on)
1шт.
13
7772197
SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8
M8 X 1.25 X 25 C
1шт.
14
1703321
WASHER,M8 x 16 x 1.6
8 PLAIN WASHER
1шт.
15
700710688
ALTERNATOR
ALTERNATOR
1шт.
87297230
REMAN-ALTERNATOR
REMANUFACTURED 12 VOLT 65 AMP ALTERNATOR - NA Only
1шт.
87297231
CORE-ALTERNATOR
Return Number, 12 VOLT 65 AMP ALTERNATOR - NA Only
1шт.
16
700708240
FAN
FAN - alternator (S.N. CFH0028481 and on)
1шт.
17
700710762
PULLEY
SHEAVE - alternator (S.N. CFH0028481 and on)
1шт.
18
6605067
MOUNTING PARTS
MOUNTING - engine
1шт.
19
7741473
STARTING MOTOR
STARTER - engine
1шт.
20
7725567
FLYWHEEL
FLYWHEEL
1шт.
21
6605133
SHEAVE
SHEAVE - 2 - groove
1шт.
22
705541
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
1/2 HARDENED PLAIN WASHER
2шт.
7771744
BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 5
5/16-18 X 2-1/4 C
1шт.
7703945
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
5/16-18 X 2-1/2 C
2шт.
703249
BOLT,Hex, 3/8" - 16 x 1", Gr 5
BOLT, 3/8-16 x 1 C
3шт.
701714
BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5
3/8-16 X 4-1/2 C
1шт.
7702202
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5
7/16-14 X 1-1/4 C
2шт.
7772817
BOLT,7/16" - 14 x 2", Gr 5
7/16-14 X 2 C
1шт.
773697
SPECIAL BOLT,7/16" - 14 x 4", Gr 5
7/16-14 X 4 C
1шт.
873299
HARDWARE
7/16-20 X 7/8 C
2шт.
7701162
BOLT,Hex, 7/16" - 20 x 2", Gr 5
7/16-20 X 2 C
4шт.
7701675
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1/2-13 X 2 C
2шт.
702217
SHIELD
1/2-13 X 4 C
1шт.
7883408
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8
3/8-16 X 1-1/4 HFS
1шт.
Выбрано товаров: 36
