Запчасти Case IH 8830 (2-38) - GASKET KITS, DIESEL (02) - ENGINE

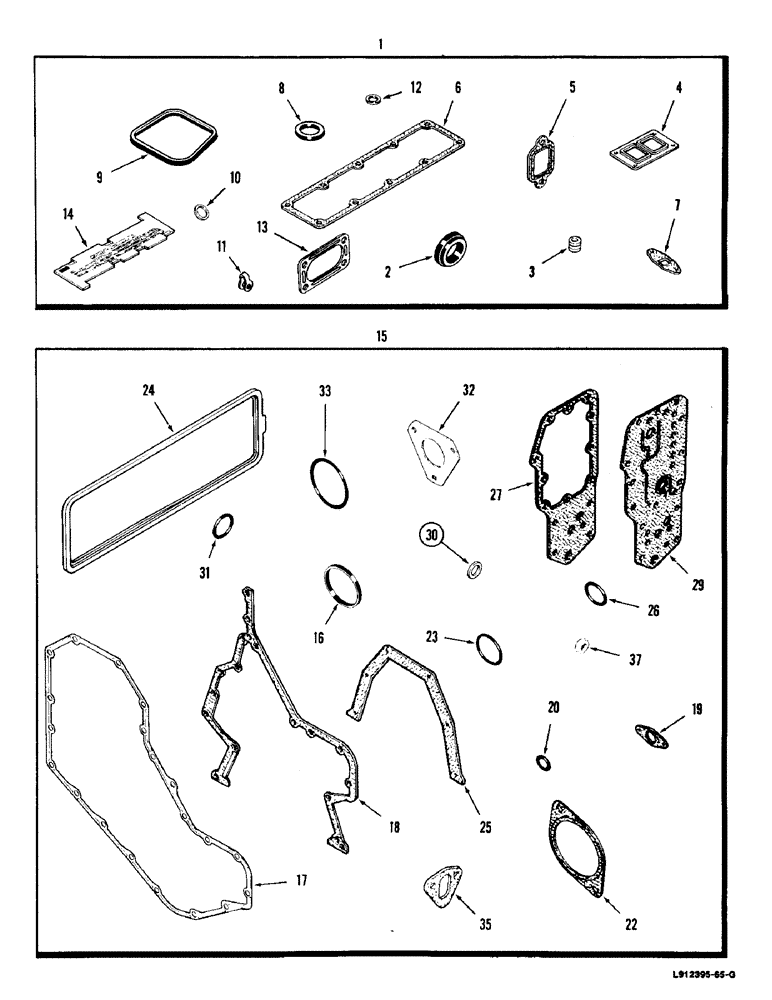

Схема запчастей Case IH 8830 - (2-38) - GASKET KITS, DIESEL (02) - ENGINE
37
26
18
16
19
29
33
31
12
17
23
22
13
6
35
7
3
27
20
32
5
14
1
10
8
24
30
25
9
2
11
4
15

Артикул

Название

Примечание

Количество

1

A77792

GASKET KIT

- valve grind (See note A) (Replaces A77481)

1шт.

2

J920020

GASKET

- housing (Replaces J903301)

1шт.

3

J901097

SEAL

- valve

8шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

6

J914028

GASKET

- intake manifold (Replaces J901099)

1шт.

7

J914388

GASKET

- oil drain tube (Replaces J901805)

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J902666

GASKET

SEAL - rocker cover

4шт.

10

J900808

SEAL

- injector (9 MM tip)

4шт.

J920174

PACKING RING

SEAL - injector (7 MM tip)

4шт.

11

J903380

SEAL

- connector

4шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

- injector, body

1шт.

13

J914856

GASKET,1.02mm Thk

- connection, crossover

1шт.

14

J823921

GAUGE

- cylinder head reused bolt stretch

1шт.

15

A77671

GASKET KIT

- engine block (See note B) (Replaces A77640) CYLINDER BLOCK

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover CYLINDER BLOCK

1шт.

17

J914385

GASKET,1.02mm Thk

- front cover (Replaces J910500) CYLINDER BLOCK

1шт.

18

J916131

GASKET

- gear housing (Replaces J907836) CYLINDER BLOCK

1шт.

19

J905595

GASKET

- pin housing CYLINDER BLOCK

1шт.

20

J913994

O-RING

- sealing (Replaces J903927) CYLINDER BLOCK

1шт.

22

J919601

GASKET

- cover plate (Replaces A77441) CYLINDER BLOCK

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces 22290R1) Cylinder block -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J904056

GASKET

- tappet cover CYLINDER BLOCK

1шт.

25

J914386

GASKET

- seal retainer (Replaces J901019) CYLINDER BLOCK

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 MM ID CYLINDER BLOCK

1шт.

27

J918256

GASKET

- cooler core, oil (Replaces J904427) CYLINDER BLOCK

1шт.

29

J918257

GASKET

- filter head (Replaces J912638) CYLINDER BLOCK

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug CYLINDER BLOCK

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing CYLINDER BLOCK

1шт.

32

J914389

GASKET

- fuel pump (Replaces J905685) CYLINDER BLOCK

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block (Replaces A157927) CYLINDER BLOCK

1шт.

35

J914304

GASKET

- mounting, lift pump (Replaces J904044) CYLINDER BLOCK

1шт.

37

J900267

SEAL

ASSEMBLY - cover bolt CYLINDER BLOCK

4шт.

Выбрано товаров: 34
