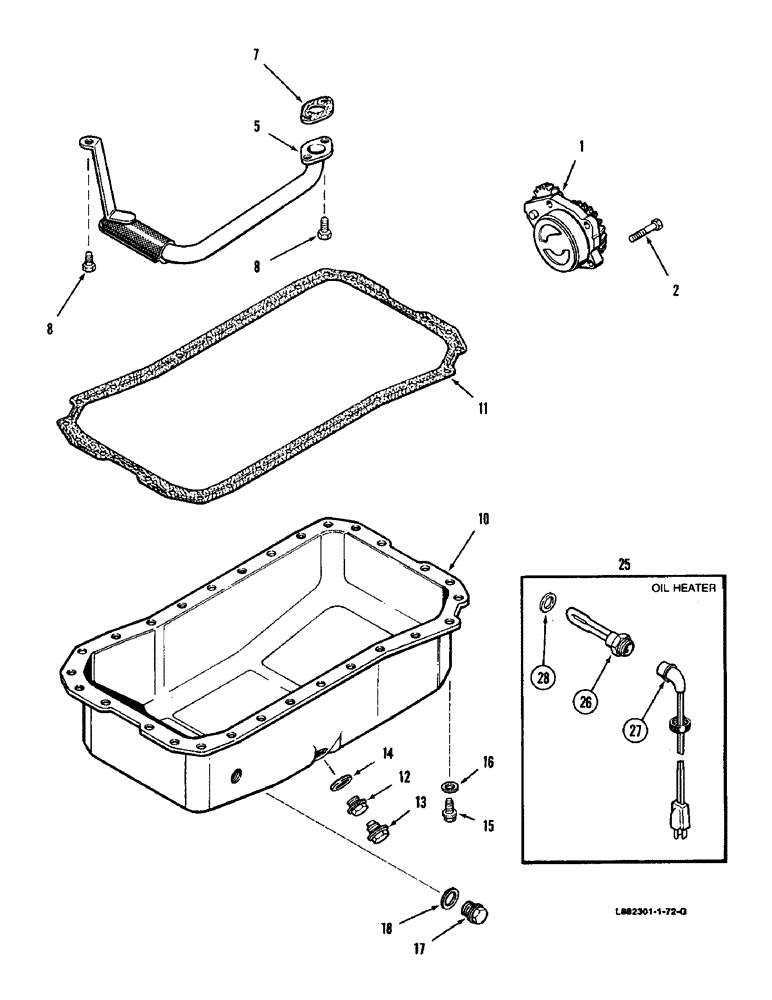

Запчасти Case IH 8830 (2-36) - OIL PUMP AND OIL PAN, ENGINE OIL HEATER, DIESEL (02) - ENGINE

1

J918211

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine (Replaces J906413)

1шт.

JR918211

REMAN-ENG OIL PUMP

PUMP - oil, remanufactured (North America only)

1шт.

JC918211

CORE-HYDRAULIC PUMP

RETURN NUMBER - pump core (Use this part number to return pump core for credit)

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

613-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - hex, 8 MM - 1.25 x 30 MM

4шт.

5

J905223

TUBE

TUBE - suction, oil

1шт.

7

J914383

GASKET

GASKET - suction tube (Replaces J905468)

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

3шт.

10

J907570

PAN

PAN - oil, engine

1шт.

11

A77673

GASKET KIT

GASKET oil pan, order: A77673

1шт.

12

J900215

PLUG

PLUG - drain, oil (Alternate with J11638 plug)

1шт.

13

J911638

PLUG,M18 x 1.5

PLUG - drain, oil magnetic

1шт.

14

J900216

PACKING RING

WASHER - seal, drain plug

1шт.

15

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange head, M8 x 25 (Replaces J907860)

28шт.

16

J907537

SPRING WASHER

WASHER - spring, pan bolt

28шт.

17

J904386

PLUG

PLUG - pipe

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

seal, plug

1шт.

A77673

GASKET KIT

oil pan, Replaces: A77482

1шт.

25

A77490

KIT

KIT - heater, engine oil ENGINE OIL HEATER

1шт.

26

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt (Order A77490) ENGINE OIL HEATER

1шт.

27

J905113

CABLE

CABLE - heater electric ENGINE OIL HEATER

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal (If equipped) ENGINE OIL HEATER

1шт.
