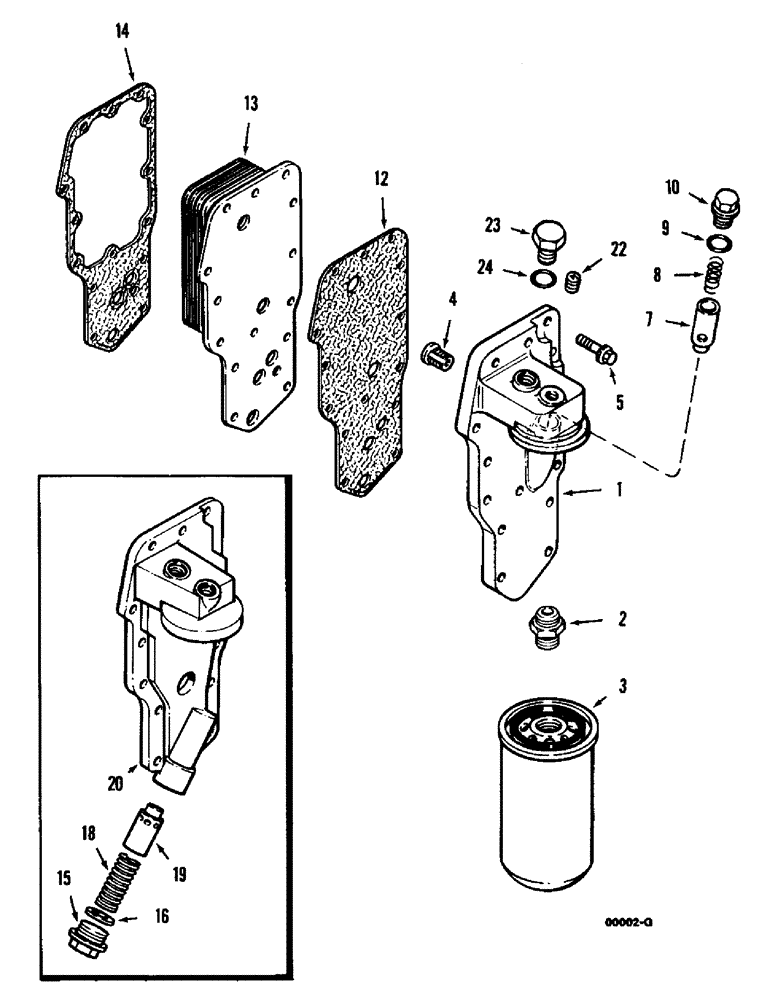

Запчасти Case IH 8830 (2-34) - OIL FILTER AND COOLER, DIESEL (02) - ENGINE

J918954

HEAD

ASSEMBLY - lube oil filter

1шт.

1

J918328

HEAD

- filter and cooler

1шт.

2

J909355

ADAPTER

- filter head

1шт.

3

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

FILTER - lube oil (Cartridge)

1шт.

4

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

5

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex flange, 8 MM - 1.25 x 35 mm (Replaces J900632)

14шт.

A77764

PACKAGE

KIT - oil pressure regulator

1шт.

7

J918428

PLUNGER

- regulator, pressure

1шт.

8

J918427

SPRING

- compression

1шт.

9

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

10

J915787

PLUG

- pipe

1шт.

12

J918257

GASKET

- filter head (Replaces J912638)

1шт.

13

J921557

COOLER

- engine oil (Replaces J904320)

1шт.

14

J918256

GASKET

- cooler core, oil (Replaces J904427)

1шт.

15

J904386

PLUG

- pipe

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

18

J903261

SPRING

- compression

1шт.

19

J909376

PLUNGER

- regulator, pressure

1шт.

20

J902295

HEAD ASSY.

HEAD - filter, lube oil

1шт.

22

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 in. PT

1шт.

23

J919686

PLUG

- hex socket, special

1шт.

24

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.
