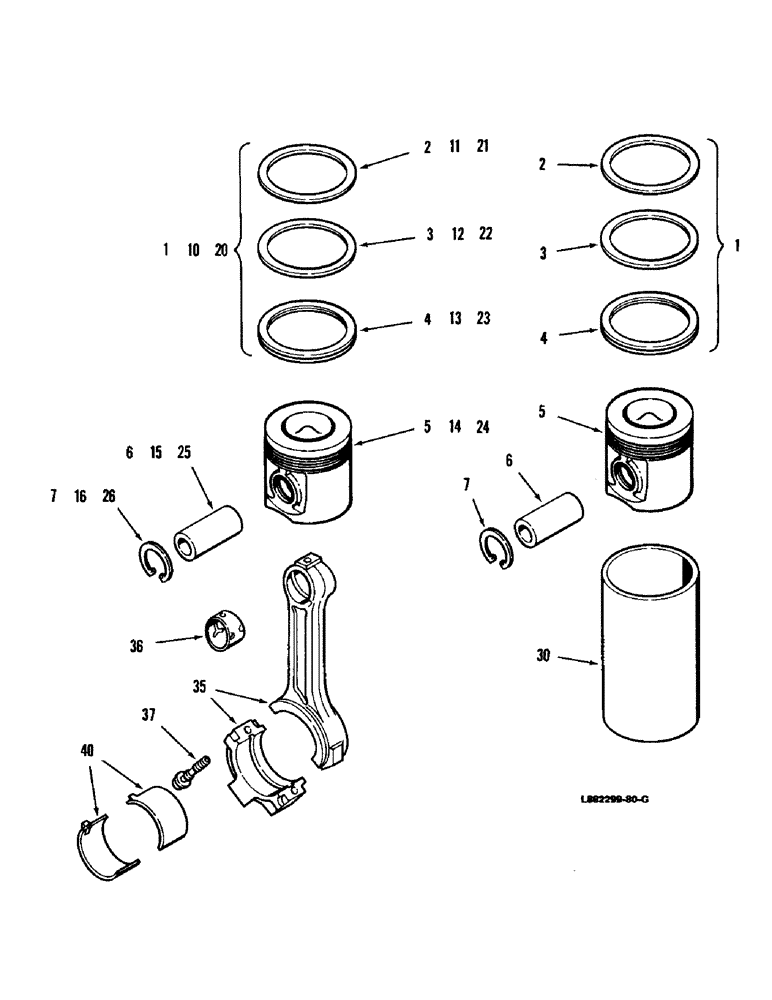

Запчасти Case IH 8830 (2-32) - PISTONS AND CONNECTING RODS, DIESEL (02) - ENGINE

A77410

PISTON

KIT - engine, standard

4шт.

1

A77401

PISTON RING SET

RING KIT - piston, standard

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - engine, standard (Stamped 6223)

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

- retainer, pin

2шт.

A77411

PISTON

KIT - engine, 0.5 MM oversize

4шт.

10

A77463

PISTON RING SET

RING KIT - engine, 0.5 MM oversize

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - engine, 0.5 MM oversize (Stamped 6209)

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

- retainer, pin

2шт.

A77412

PISTON

KIT - engine, 1.0 MM oversize

4шт.

20

A77464

PISTON RING SET

RING KIT - engine, 1.0 MM oversize

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - engine, 1.0 MM oversize (Stamped 6208)

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

- retainer, pin

2шт.

30

J904166

SLEEVE

LINER - piston (Use only in engine block repair) (When liner is installed, use only A77410 piston kit)

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new CONNECTING RODS

4шт.

35

JR901569

ROD

Assembly - connecting, remanufactured

4шт.

35

JC901569

CORE-ROD CONNECTING

Return Number - connecting rod (Use this number to return connecting rod for credit)

4шт.

35

84145405R

REMAN-CONNECTING ROD

8830, Reman For New PN J901569

4шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

35

JC942581

CORE-ROD CONNECTING

Return Number - connecting rod (Use this number to return connecting rod for credit)

4шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - rod to piston pin (Order J901569) CONNECTING RODS

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex special, MJ11 x 1 x 26 MM CONNECTING RODS

2шт.

40

A77465

BEARING SET

BEARING KIT - connection rod set, upper and lower, standard CONNECTING RODS

4шт.

A77466

BEARING SET

BEARING KIT - connection rod set, upper and lower, 0.25 MM oversize CONNECTING RODS

4шт.

A77467

BEARING LINER

BEARING KIT - connection rod set, upper and lower, 0.5 MM oversize CONNECTING RODS

4шт.

A77468

BEARING SET

BEARING KIT - connection rod set, upper and lower, 0.75 MM oversize CONNECTING RODS

4шт.

A77469

BEARING SET

BEARING KIT - connection rod set, upper and lower, 1.0 MM oversize CONNECTING RODS

4шт.
