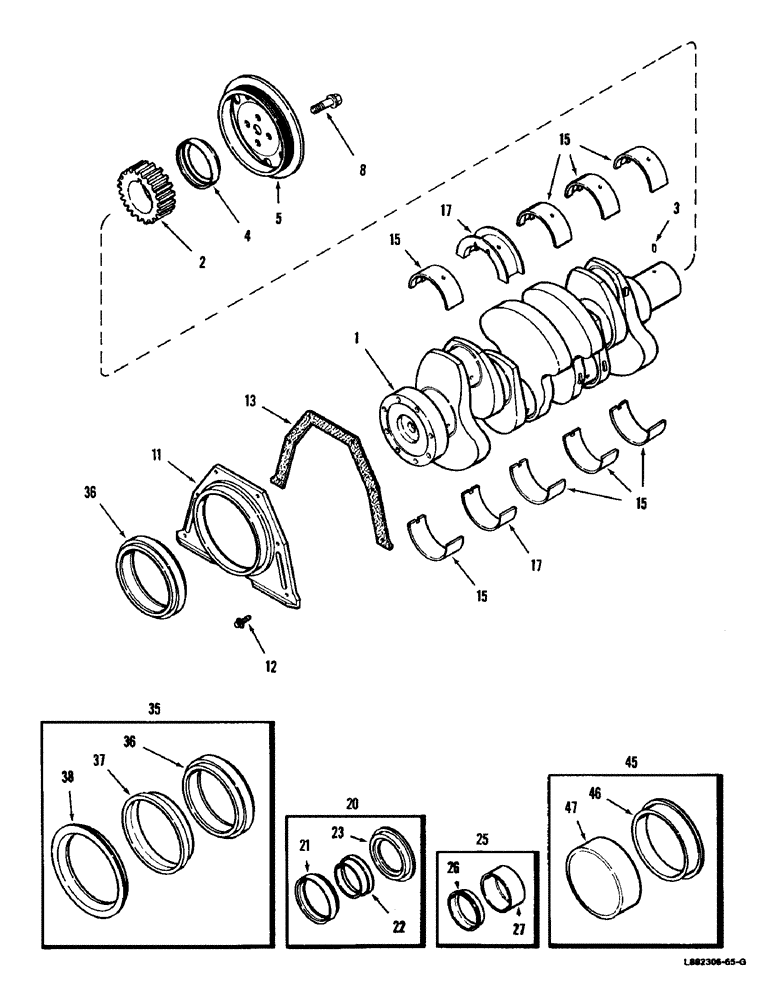

Запчасти Case IH 8830 (2-28) - CRANKSHAFT, DIESEL (02) - ENGINE

JR918323

CRANKSHAFT

- remanufactured, (North America only)

1шт.

J929036R

REMAN-CRANKSHAFT

8830, Reman For New P/N JR918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC918323

CORE-CRANKSHAFT

RETURN NUMBER - crankshaft (Use this part number to return crankshaft for credit)

1шт.

1

J918323

CRANKSHAFT

ASSEMBLY - engine (New) (Replaces J908031)

1шт.

J929036R

REMAN-CRANKSHAFT

8830, Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J919681

PINION

GEAR - crankshaft (Replaces J901258)

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order ref 20)

1шт.

5

J914494

PULLEY,181.25mm OD

- crankshaft (Replaces J903858)

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange head, M12 x 36 MM

4шт.

11

J921043

REAR COVER

RETAINER - rear seal (Replaces J913447)

1шт.

12

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

13

J914386

GASKET

- seal retainer

1шт.

15

A77405

CRANKSHAFT BEARING

BEARING KIT - main (Set) upper and lower, standard

4шт.

A77472

BEARING SET

BEARING KIT - main (Set) upper and lower, 0.25 MM oversize

4шт.

A77474

BEARING SET

BEARING KIT - main (Set) upper and lower, 0.5 MM oversize

4шт.

A77476

BEARING SET

BEARING KIT - main (Set) upper and lower, 0.75 MM oversize

4шт.

A77478

BEARING SET

BEARING KIT - main (Set) upper and lower, 1.0 MM oversize

4шт.

17

A77406

CRANKSHAFT BEARING

BEARING KIT - thrust, main (Set) upper and lower, standard

1шт.

A77473

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower 0.25 MM oversize

1шт.

A77475

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower 0.5 MM oversize

1шт.

A77477

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower 0.75 MM oversize

1шт.

A77479

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower 1.0 MM oversize

1шт.

20

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J906080

PACKAGE, REPAIR

WEAR SLEEVE KIT - crankshaft front

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J909410

GASKET KIT

SEAL KIT - oil, crankshaft rear (Replaces J904323)

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

38

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

45

J906081

SLEEVE

WEAR SLEEVE KIT - crankshaft rear

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

47

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
