(2-26) - CYLINDER BLOCK AND ENGINE BLOCK HEATER, DIESEL, ENGINE SERIAL NUMBER 44669664 AND AFTER 4-390 ENGINE

Запчасти Case IH 8830 (2-26) - CYLINDER BLOCK AND ENGINE BLOCK HEATER, DIESEL, ENGINE SERIAL NUMBER 44669664 AND AFTER 4-390 ENGINE (02) - ENGINE

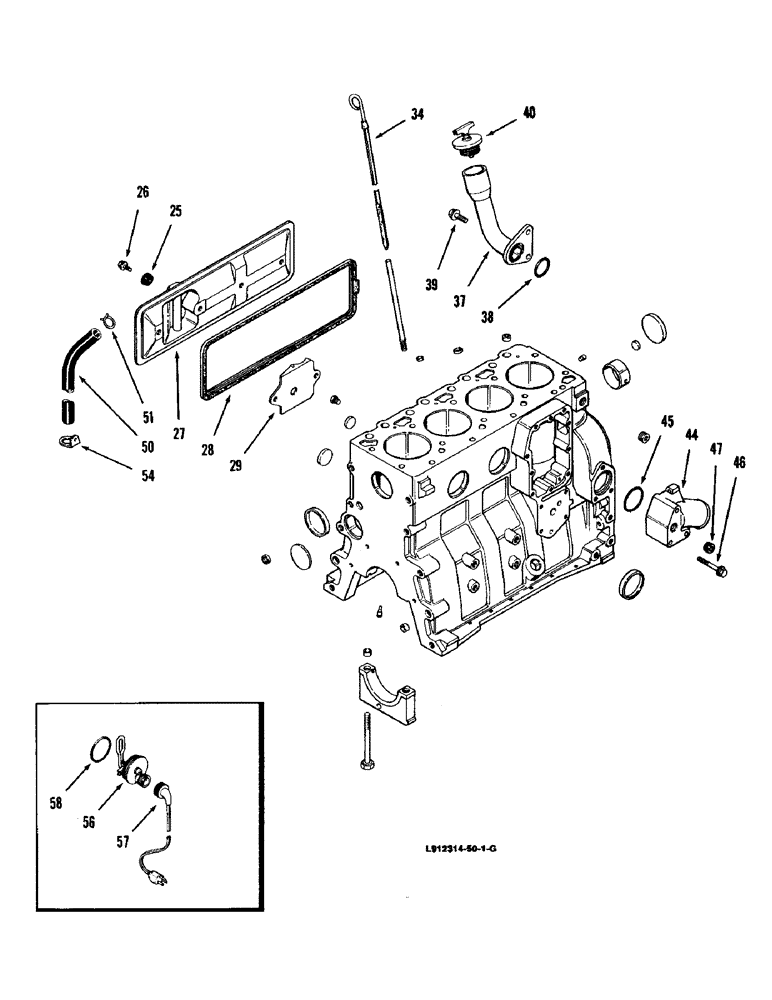

Схема запчастей Case IH 8830 - (2-26) - CYLINDER BLOCK AND ENGINE BLOCK HEATER, DIESEL, ENGINE SERIAL NUMBER 44669664 AND AFTER 4-390 ENGINE (02) - ENGINE
26
37
34
38
50
45
25
54
51
56
44
27
29
40
47
58
57
46
39
28
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

25

J900267

SEAL

ASSEMBLY - cover bolt

4шт.

26

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 20 mm

2шт.

27

J916441

COVER

- tappet

1шт.

28

J904056

GASKET

- tappet cover

1шт.

29

J907586

BAFFLE

- tappet cover

1шт.

33

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick, oil

1шт.

34

J904294

DIPSTICK

- oil level gauge

1шт.

37

J905440

TUBE

- oil fill

1шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, 38 MM ID

1шт.

39

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex flange, 12 MM - 1.75 x 25 MM

2шт.

40

A77424

FILLER CAP

CAP ASSEMBLY - fill, oil

1шт.

44

J903103

MANIFOLD

CONNECTION - water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 MM ID

1шт.

46

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- hex flange, 10 MM - 1.50 x 75 MM

3шт.

47

A77429

PLUG

- hex socket pipe, 1/2 in. PT

2шт.

50

J906593

HOSE

Breather

1шт.

51

J904230

CLAMP,25.4mm

- spring, hose

1шт.

54

J909670

CLIP

- retaining

1шт.

A77634

KIT

HEATER KIT - engine block

1шт.

56

J916127

RESISTOR

HEATER - engine block (Order kit A77634) ENGINE BLOCK HEATER

1шт.

57

J905113

CABLE

- engine block heater

1шт.

58

J910517

O-RING

- heater sealing ENGINE BLOCK HEATER

1шт.
