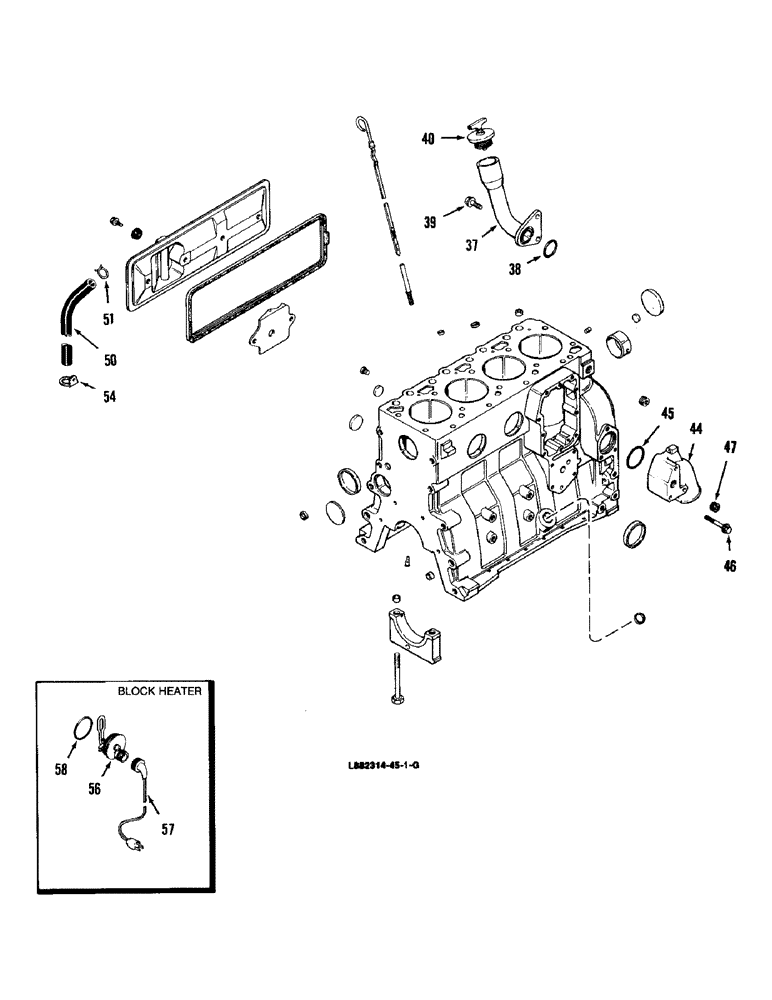

Запчасти Case IH 8830 (2-24) - CYLINDER BLOCK, ENGINE BLOCK HEATER AND COMPLETE ENGINE ASSEMBLY, DIESEL (02) - ENGINE

37

J905440

TUBE

- oil fill

1шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing

1шт.

39

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - hex flange, M12 x 1.75 x 25 MM

2шт.

40

A77424

FILLER CAP

CAP - oil fill tube

1шт.

44

J903103

MANIFOLD

CONNECTION - water inlet

1шт.

45

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 MM ID

1шт.

46

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

BOLT - hex flange head, M10 x 1.50 x 75 MM

3шт.

47

A77429

PLUG

- hex socket pipe, 1/2 in. PT

2шт.

50

J906593

HOSE

Breather

1шт.

51

J904230

CLAMP,25.4mm

- spring, hose

1шт.

54

J909670

CLIP

- retaining

1шт.

A77634

KIT

HEATER KIT - engine block

1шт.

56

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 12 volt ENGINE BLOCK HEATER

1шт.

57

J905113

CABLE

- engine block heater ENGINE BLOCK HEATER

1шт.

58

J910517

O-RING

- heater sealing ENGINE BLOCK HEATER

1шт.

A174155

ENGINE ASSEMBLY

- 4-390, complete, new (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, and exhaust pipe)

1шт.
