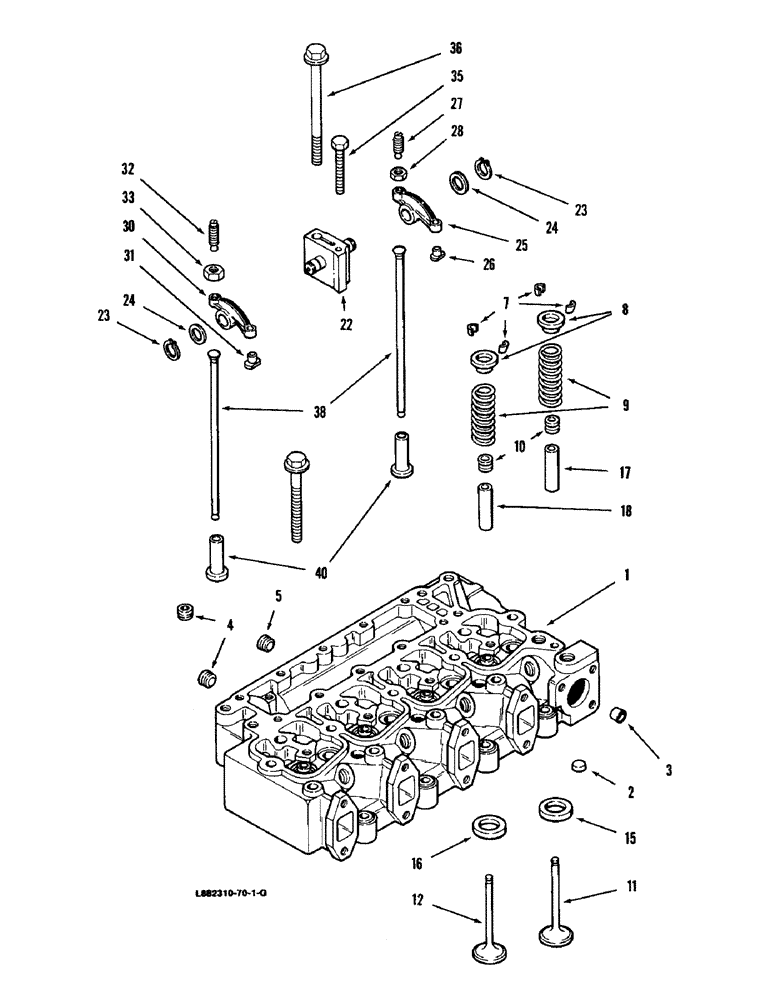

Запчасти Case IH 8830 (2-16) - VALVE MECHANISM, DIESEL (02) - ENGINE

JR920611

REMAN-CYLINDER HEAD

HEAD - cylinder, remanufactured (North America only)

1шт.

JC920611

CORE-CYLINDER HEAD

RETURN NUMBER - cylinder head core (Use this number to return cylinder head core for credit)

1шт.

1

J920611

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new (With valves)

1шт.

J920005

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, (Without valves)

1шт.

2

J902606

PLUG

- expansion (21 MM) OD

3шт.

3

J909403

BUSHING

SLEEVE - cylinder head

1шт.

4

444630

PLUG,Hex Hd, 1/2"-14

- hex head

5шт.

5

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

2шт.

7

CASJ900250

RETAINER

KEEPER - valve

16шт.

8

J900299

RETAINER

- valve spring

8шт.

9

J900276

VALVE SPRING

SPRING - valve

8шт.

10

J901097

SEAL

- valve

8шт.

11

J920867

VALVE

- intake

4шт.

12

J920868

VALVE

- exhaust

4шт.

15

J906854

SEAT, VALVE

SEAT - insert, intake valve (Service repair only)

4шт.

16

J904105

SEAT, VALVE

SEAT - insert, exhaust valve (Service repair only)

4шт.

17

J904408

GUIDE

- valve, intake (Service repair only)

4шт.

18

J904409

GUIDE

- valve, exhaust (Service repair only)

4шт.

J906206

GUIDE

- valve, intake and exhaust, 11 MM OD (Service repair only)

4шт.

20

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - hex flange head, M12 x 1.75 x 70 MM

4шт.

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- hex flange head, M12 x 1.75 x 120 MM

10шт.

22

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm

4шт.

23

J900242

SNAP RING

RING - retaining, rocker arm

8шт.

24

J900245

WASHER

- thrust, rocker arm

8шт.

25

J910811

ROCKER

ARM ASSEMBLY - rocker, intake

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 in. NF x 40 MM

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 in. NF

1шт.

30

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust

4шт.

31

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 in. NF x 40 MM

1шт.

33

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 in. NF

1шт.

35

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- hex, M8 x 1.25 x 75 mm

4шт.

36

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - hex flange head, 12 MM x 1.75 x 180 MM

4шт.

38

J904679

PUSH ROD

ROD - push, rocker arm

8шт.

40

J907240

TAPPET

- valve, push rod

8шт.
