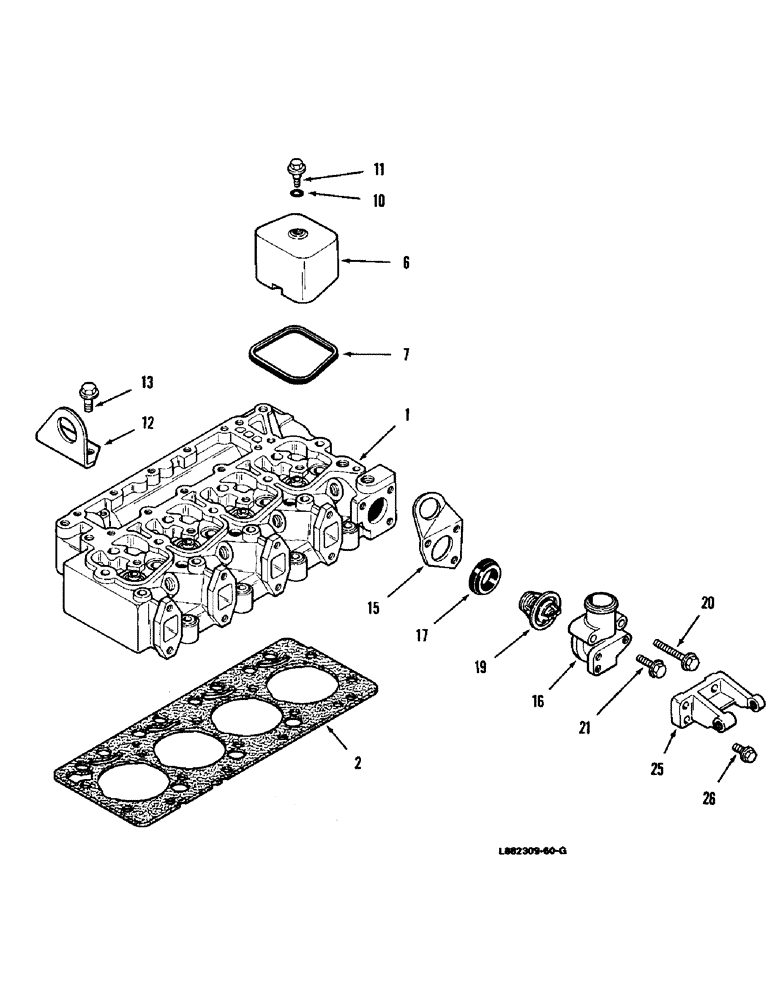

Запчасти Case IH 8830 (2-12) - CYLINDER HEAD AND COVERS, THERMOSTAT AND HOUSING, DIESEL (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, engine

1шт.

2

J921393

GASKET

- cylinder head, standard (Replaces J907054)

1шт.

J921395

CYLINDER HEAD GASKET

- cylinder head, 0.25 MM thicker (2 notches) (Replaces J907055)

1шт.

J921397

GASKET

- cylinder head, 0.50 MM thicker (3 notches) (Replaces J907056)

1шт.

6

J902604

COVER

- rocker

1шт.

7

J902666

GASKET

SEAL - rocker cover

4шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt (Replaces J901837)

4шт.

11

J907049

BOLT,Hex

- special, 8M x 1.25 x 21.25 MM

4шт.

12

J908118

BRACKET

- lifting, rear

1шт.

13

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex flange, 12 MM - 1.75 x 25 MM, grade 10.9

2шт.

15

J903757

BRACKET

- lifting, front THERMOSTAT AND HOUSING

1шт.

16

J914409

HOUSING

- thermostat (Replaces J903756) THERMOSTAT AND HOUSING

1шт.

17

J920020

GASKET

- housing (Replaces J903301) THERMOSTAT AND HOUSING

1шт.

19

NSS

NOT SOLD SEPARAT

THERMOSTAT - water, 95 degree C (Order kit A77736) THERMOSTAT AND HOUSING

1шт.

20

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 70 mm, Thermostat and housing

2шт.

21

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 35 mm, Thermostat and housing

1шт.

25

J910713

SUPPORT

- alternator mounting THERMOSTAT AND HOUSING

1шт.

26

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.
