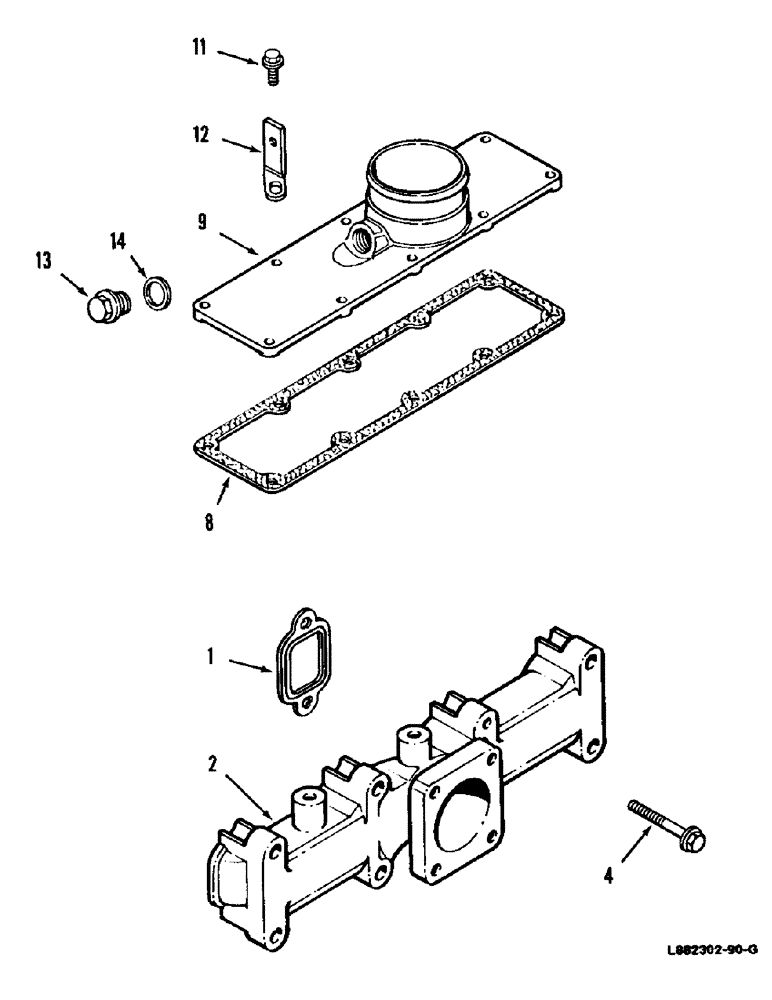

Запчасти Case IH 8830 (2-10) - MANIFOLDS, DIESEL (02) - ENGINE

1

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

2

J902274

MANIFOLD

- exhaust

1шт.

4

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 65 mm, grade 10.9

1шт.

8

J914028

GASKET

- intake manifold (Replaces J901999)

1шт.

9

NSS

NOT SOLD SEPARAT

MANIFOLD - intake (Order A77415 kit) INTAKE MAINFOLD

1шт.

11

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, (Replaces J904341) Intake manifold Hex Flg Hd, M8 x 1.25 x 25

10шт.

12

NSS

NOT SOLD SEPARAT

BRACE - fuel tube INTAKE MANIFOLD

1шт.

13

J907185

PLUG

ASSEMBLY - manifold INTAKE MANIFOLD

1шт.

14

J906773

WASHER

- plug sealing INTAKE MANIFOLD

1шт.

A77415

COVER

MANIFOLD KIT - intake (Includes ref. 9, 13 and 14) INTAKE MANIFOLD

1шт.
