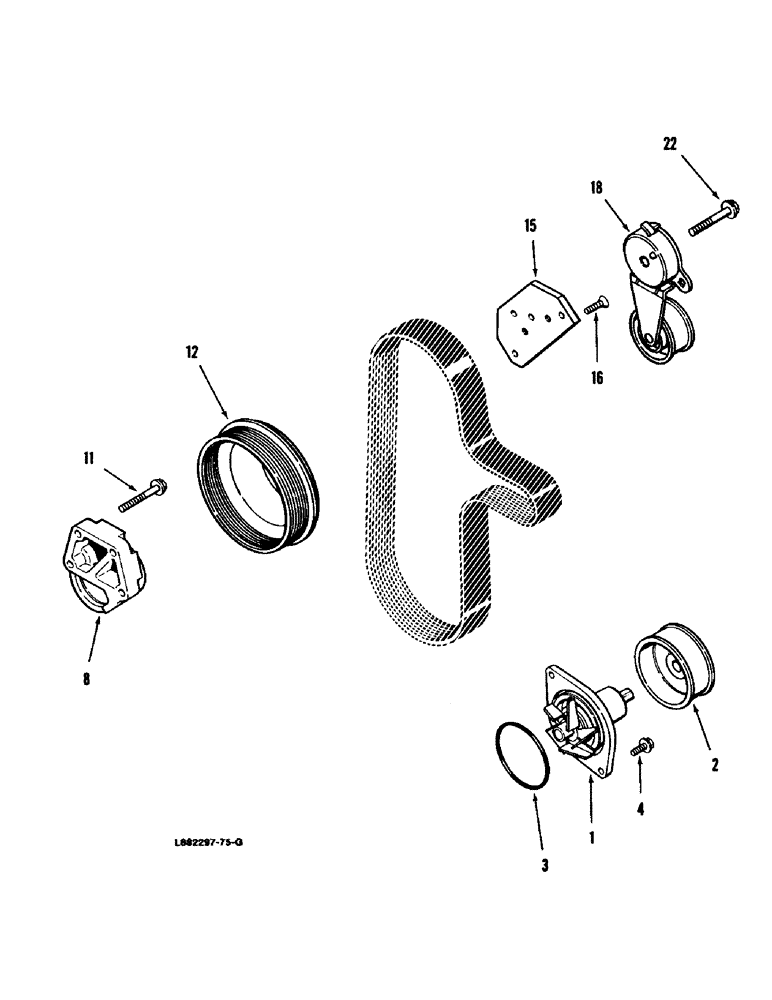

Запчасти Case IH 8830 (2-06) - WATER PUMP SYSTEM, DIESEL ENGINE (02) - ENGINE

AR77703

PUMP

- water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

8830

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

RETURN NUMBER - pump core (Use this part number to return pump core for credit)

1шт.

A77703

PUMP, WATER

PUMP KIT - water (Replaces A77471)

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

8830, Replaces P/N A77703 & AR77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water (Replaces A77471)

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump (Order A77703)

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces 22290R1) -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J911203

SUPPORT

BRACKET ASSEMBLY - fan

1шт.

11

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- hex, M8 x 1.25 x 75 mm

4шт.

12

J914462

PULLEY,163mm OD

- fan (Replaces J908447)

1шт.

15

J919985

SUPPORT

BRACKET - belt tension (Replaces J904548)

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, M8 x 25

2шт.

18

J914086

BELT TENSIONER

TENSIONER ASSEMBLY - belt (Replaces J912246)

1шт.

22

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- hex flange, 10 - 1.5 x 70 mm, grade 10.9

1шт.

IF DLR IS LOOKING FOR THE P/N FOR THE FAN V-BELT; P/N IS J911587 (DIESEL APPL). SEE PAGE 2-56 ITEM 14 (P/N 700708233 WHICH SUBS TO J911587).

1шт.
