(9-32) - CONTROL VALVE ASSEMBLY, GUARD ANGLE TILT KIT, 700707590 CONTROL VALVE ASSY COMPLETE

Запчасти Case IH 8830 (9-32) - CONTROL VALVE ASSEMBLY, GUARD ANGLE TILT KIT, 700707590 CONTROL VALVE ASSY COMPLETE (09) - CHASSIS

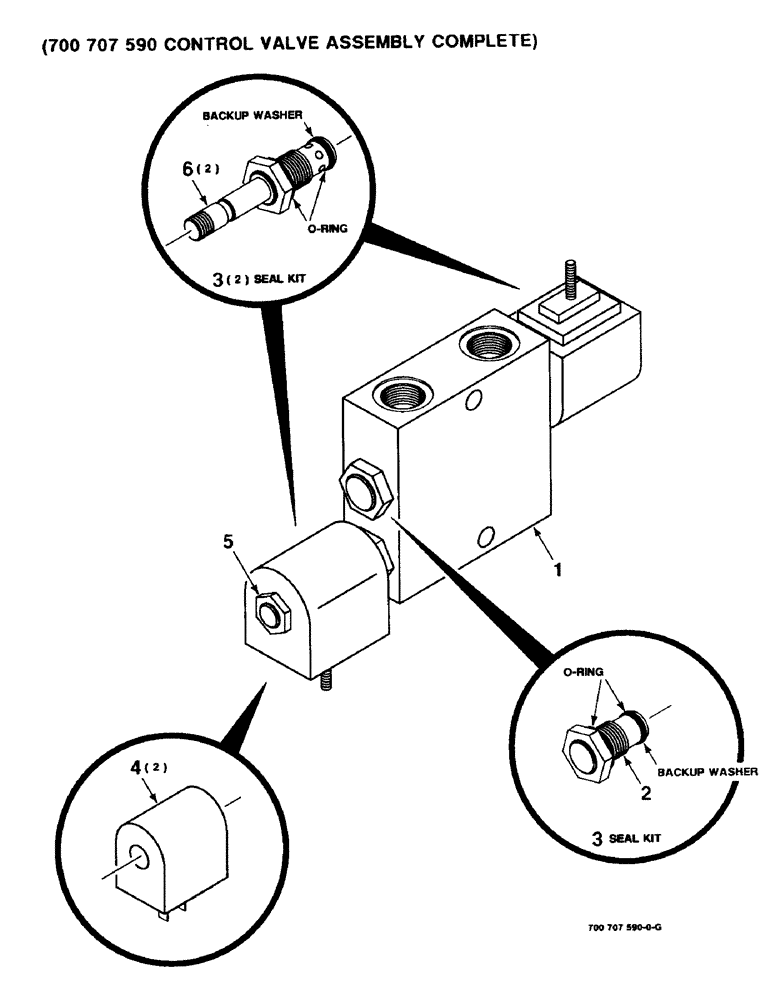

Схема запчастей Case IH 8830 - (9-32) - CONTROL VALVE ASSEMBLY, GUARD ANGLE TILT KIT, 700707590 CONTROL VALVE ASSY COMPLETE (09) - CHASSIS
6
3
1
2
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707590

CONTROL VALVE

VALVE - control complete, reel lift

1шт.

2

700707832

VALVE PRESSURE RELIE

CHECK VALVE ASSEMBLY

1шт.

3

700706154

SEAL KIT

3шт.

4

700706149

COIL

ASSEMBLY

2шт.

5

700706151

NUT

1шт.

6

700706153

HYDRAULIC VALVE

CARTRIDGE

2шт.
