(9-30) - HYD CYL ASSY, GUARD ANGLE TILT KIT, 700712017 HYD CYL COMPLETE 2-1/2 IN DIAMETER X 8 IN STROKE

Запчасти Case IH 8830 (9-30) - HYD CYL ASSY, GUARD ANGLE TILT KIT, 700712017 HYD CYL COMPLETE 2-1/2 IN DIAMETER X 8 IN STROKE (09) - CHASSIS

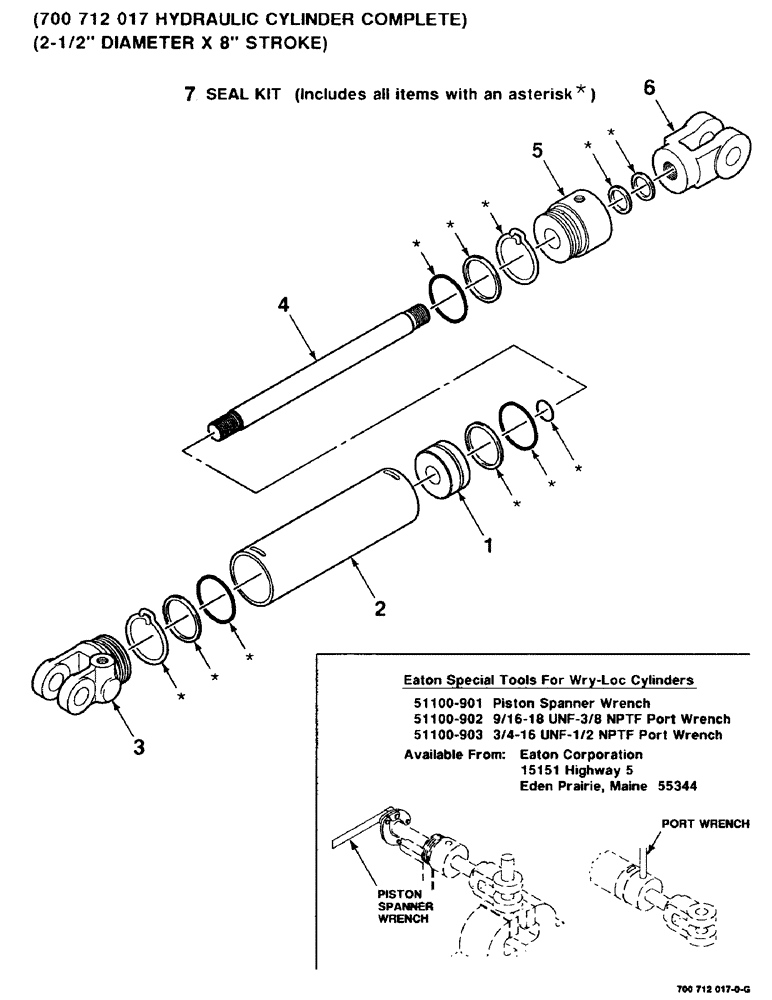

Схема запчастей Case IH 8830 - (9-30) - HYD CYL ASSY, GUARD ANGLE TILT KIT, 700712017 HYD CYL COMPLETE 2-1/2 IN DIAMETER X 8 IN STROKE (09) - CHASSIS
2
4
6
1
3
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712017

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2-1/2 in bore x 8 in stroke)

1шт.

1

700710191

PISTON

- cylinder

1шт.

2

700712096

TUBE ASSY.

BARREL

1шт.

3

700704894

CYLINDER HEAD

HEAD - cylinder

1шт.

4

700700092

PISTON ROD

ROD - piston

1шт.

5

700712097

BEARING

- cylinder rod

1шт.

6

700700030

CLEVIS

- rod end

1шт.

7

700710192

SEAL KIT

Includes items in art marked with asterisk

1шт.
