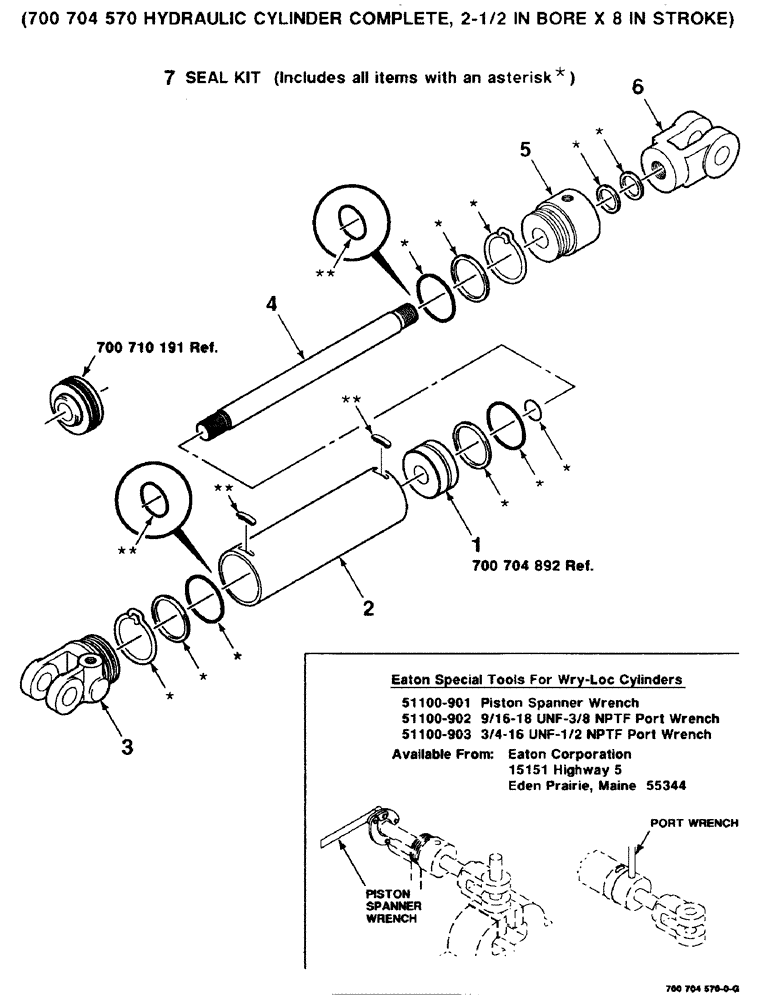

Запчасти Case IH 8830 (9-28) - HYDRAULIC CYL ASSY, GUARD ANGLE TILT KIT, 700704570 HYD CYL COMPLETE 2-1/2 IN BORE X 8 IN STROKE (09) - CHASSIS

700704570

HYDRAULIC CYLINDER

COMPLETE (2-1/2 in bore x 8 in stroke)

1шт.

1

700704892

PISTON

- cylinder (Superseded by 700710191 and 700710192)

1шт.

700710191

PISTON

- cylinder

1шт.

700710192

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.

2

700704893

BARREL

1шт.

700710238

SLEEVE CYLINDER

BARREL (Ends of I.D. are chamfered for o-ring sealing)

1шт.

3

700704894

CYLINDER HEAD

HEAD - cylinder

1шт.

4

700700092

PISTON ROD

ROD - piston

1шт.

5

700704891

CYLINDER END CAP

BEARING - cylinder rod

1шт.

6

700700030

CLEVIS

- rod end

1шт.

7

700704895

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk

1шт.

700710192

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with double asterisk

1шт.
