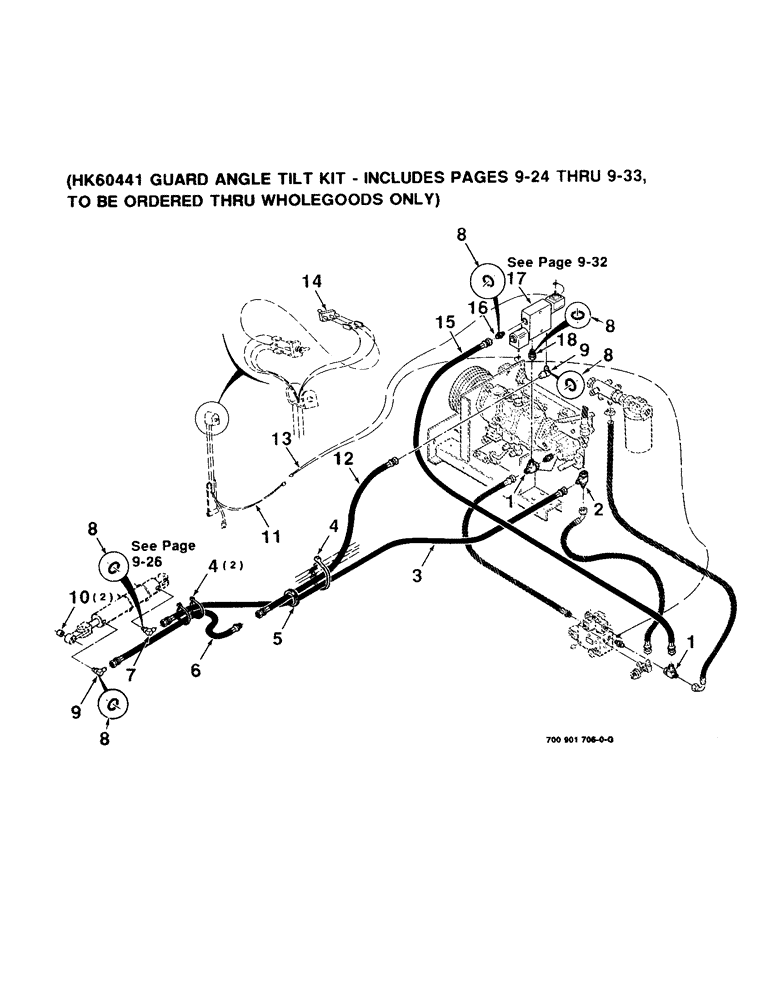

Запчасти Case IH 8830 (9-24) - GUARD ANGLE TILT KIT, HK60441 GUARD ANGLE TILT KIT, INCLUDES PAGES 9-24 THRU 9-32 (09) - CHASSIS

HK60441

GUARD ANGLE TILT KIT COMPLETE (Includes pages 9-24 true 9-32)

1шт.

1

7846850

TEE

- swivel

2шт.

2

8746448

TEE

- swivel

1шт.

3

700707730

HOSE ASSY.

HOSE - hydraulic

1шт.

4

529070

CABLE TIE,368.3mm L

TIE - cable

3шт.

5

727487

SCREW

1шт.

6

843292

HYDRAULIC HOSE

HOSE - hydraulic

1шт.

7

8746398

ELBOW

90 DEGREE ELBOW (Includes item 8)

1шт.

8

738468

O-RING

5шт.

9

7746555

ELBOW

90 DEGREE ELBOW (Includes item 8)

1шт.

10

700114925

BUSHING

2шт.

11

700707607

HARNESS

- wiring

1шт.

12

700703818

HOSE ASSY.

HOSE - hydraulic

1шт.

13

700707608

WIRE HARNESS

HARNESS - wiring

1шт.

14

700705647

TOGGLE SWITCH

SWITCH

1шт.

15

700707610

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

16

7846660

CONNECTION

CONNECTOR (Includes item 8)

1шт.

17

700707590

CONTROL VALVE

VALVE ASSEMBLY - control

1шт.

18

700701791

ADAPTER

(Includes item 8)

1шт.

for additional part numbers not shown refer to page 8-8 and 8-9.
