(9-22) - HYDRAULIC SERVO-CONTROL ASSY.,GROUND SPEED ASSIST KIT, 700710787 HYD SERVO- CONTROL ASSY. COMPLETE

Запчасти Case IH 8830 (9-22) - HYDRAULIC SERVO-CONTROL ASSY.,GROUND SPEED ASSIST KIT, 700710787 HYD SERVO- CONTROL ASSY. COMPLETE (09) - CHASSIS

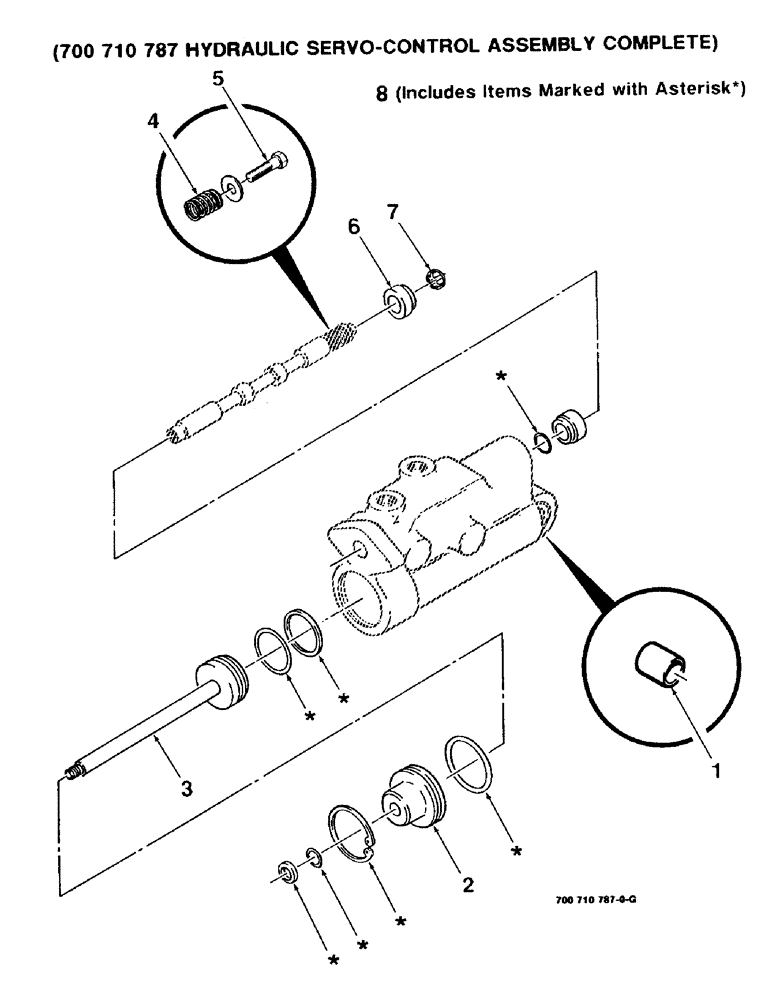

Схема запчастей Case IH 8830 - (9-22) - HYDRAULIC SERVO-CONTROL ASSY.,GROUND SPEED ASSIST KIT, 700710787 HYD SERVO- CONTROL ASSY. COMPLETE (09) - CHASSIS
5
6
7
4
8
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700710787

SERVO-CONTROL

HYDRAULIC SERVO-CONTROL ASSEMBLY

1шт.

1

700712103

GROOVED BUSHING

PIVOT BUSHING

1шт.

2

700711029

BEARING

1шт.

3

700711030

PISTON

AND ROD

1шт.

4

700712104

SPRING

1шт.

5

738344

SCREW

SPOOL SCREW

1шт.

6

8730541

CAP

1шт.

7

8730517

BUTTON

- insert

1шт.

8

700711031

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk

1шт.
